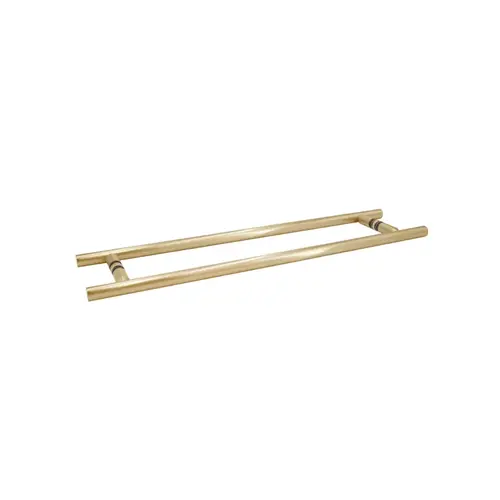

FHC LHTB18X18SB Back-to-Back Ladder Style Towel Bar, Brass Material, 18" Center To Center, 3/4" Tube Diameter, Satin Brass Finish
Item #: LHTB18X18SB by Frameless Hardware Company LLC
Brand: FHC
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from Brass material, this ladder style towel bar provides a solid structure for bathroom use, suitable for standard moisture environments.
- Features an 18" center to center measurement and a 22" overall length, defining the span for towel placement on the mounting surface.
- Designed for use with tempered glass requiring a glazing thickness between 1/4" and 1/2" (6mm to 12mm) for proper fitment.
- The bar profile has a 3/4" tube diameter, offering a specific dimension for handling and visual presence on the glass panel.
- Mounting is achieved via a back-to-back mounting type, requiring 2 holes drilled into the glass for secure attachment.
- Securing hardware uses an M6-1.0 thread size for component connection, ensuring the back-to-back assembly is held firmly.
- Finished in Satin Brass, this component complements other fittings that share the same finish in the installation area.
Finish
Satin Brass
Thread Size
M6-1.0
Glass Thickness
1/4" to 1/2" (6mm to 12mm)
Holes Required for Installation
2
Mounting Type
Back-To-Back
Center to Center
18"
Hole Diameter
1/2"
Overall Length
22"
Tube Diameter
3/4"
Product Type
Back-to-Back Ladder Style Towel Bar
Glass Requirement
Tempered Glass
Material
Brass
Product Overview
This Back-to-Back Ladder Style Towel Bar is constructed from Brass material and designed for mounting onto glass shower doors in bathroom environments. The back-to-back configuration allows installation on both sides of a single glass panel using through-glass fastening. The unit features an 18" Center To Center measurement between mounting posts and an Overall Length of 22", defining the required drilling layout and span across the glass surface. The bar maintains a 3/4" Tube Diameter, forming the cylindrical profile for towel placement. It is specified for use with Tempered Glass and accommodates a Glass Thickness range from 1/4" to 1/2" (6mm to 12mm). Installation requires preparation of 2 mounting holes, each drilled to a 1/2" Hole Diameter to allow hardware passage. Assembly is secured using fasteners with an M6-1.0 Thread Size. The unit is presented in a Satin Brass finish, coordinating with matching shower hardware and bathroom fixtures in residential or commercial applications where finish consistency is required.
