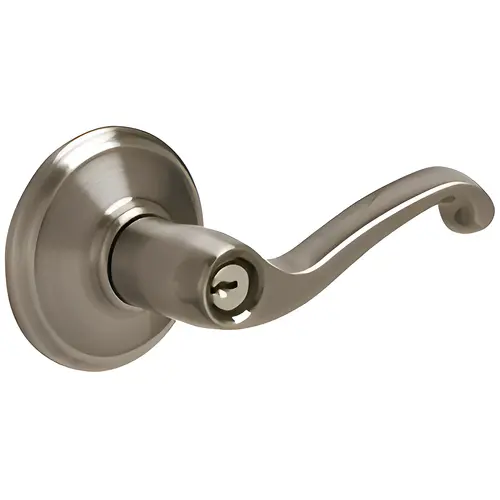

Schlage Residential F51A FLA 620 F51AFLA620 16-211 10-063 K4 Flair Entry - Antique Pewter
Item #: F51A FLA 620 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156421909
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Easy 3-Step Installation, Only a Screwdriver Needed
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Metal Construction Adds Strength, Security and Durability
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- Certified Commercial Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Graded Best in Residential Security, Durability, and Finish
- Entry (Keyed) Function - Locked by Key & Rotating Cylinder from Outside; Unlocked by Key on Outside or when opened from inside
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
Keyed Entry
Finish
Antique Pewter
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Design
Flair Lever
Strike
Full Lip 2-1/4 Inch, Radius Corner
Color Code
620/US15A
Color
Satin Nickel Plated Blackened Satin Relieved CC
Grade
ANSI/BHMA Grade 2
Keyway
SC1 5-Pin Pin & Tumbler
Cylinder Type
Conventional Cylinder
Finish Description
Satin Nickel Blackened
Lever Style
FLA-Flair
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.7188
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Length
5 Inches
Included Components
Keyed Entry Levers; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
Application
Residential; Standard Doors
Warranty
Lifetime Limited Mechanical/Finish
Bolt Throw
1/2 Inch
Strike Type
Radius Corner Full Lip
ADA Compliant
YES
Finish Family
Antique Nickel
Bolt Type
Deadlatching
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed; ADA Compliant
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore: 2-1/8"; Edge Bore: 1"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Entry/Entrance/Office
Product Projection
2.7188 Inch
Features
Highest Industry Ratings for Residential Security, Durability and Finish; Installs in Minutes; Reversible Levers
Strike Size
1-5/8" x 2-1/4"
Latch Type
Deadlatch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.25x6x7"
Lever Style Family
Wave Lever
Sub-Series
F51A-FLA
Collection
Flair
Package Height
3.25"
Package Length
7"
Package Width
6"
Item Weight
2.29 lbs
Dimension
4" Lever and 2-1/4" Projection with 2-3/4" Diameter Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
620
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Flair Lever
No of inners
1
No Of Pins
5 Pin Cylinder
ANSI/BHMA Standards
F81
Keyed
Yes
Handle Type
Lever
Keying
None (Select for Less Cylinder Options)
Handle Design
Flair Lever
Electronic
No
Lever/Knob Design
Flair Lever
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-086: Dead Latch, Dual Option (Round, Drive-in)
Rose Design
Adlen Rose
Product Overview
The Schlage Flair Lever Keyed Entry Lock in Antique Pewter is perfect for use on entry doors where keyed locking is needed. The elegant Flair lever's ornate details are reminiscent of a paper scroll. The sophisticated look of our Antique Pewter finish adds richness to any space. Plus, it's been designed and tested with strength and durability in mind.
