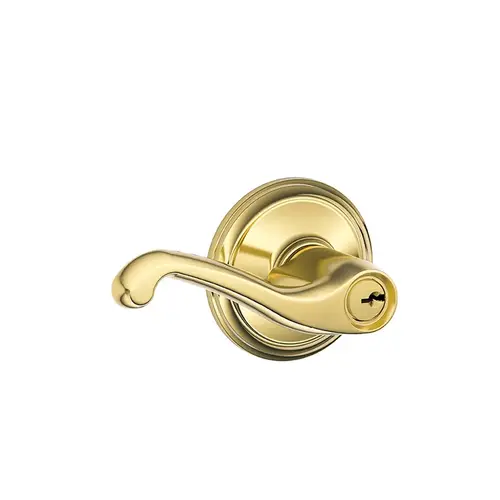

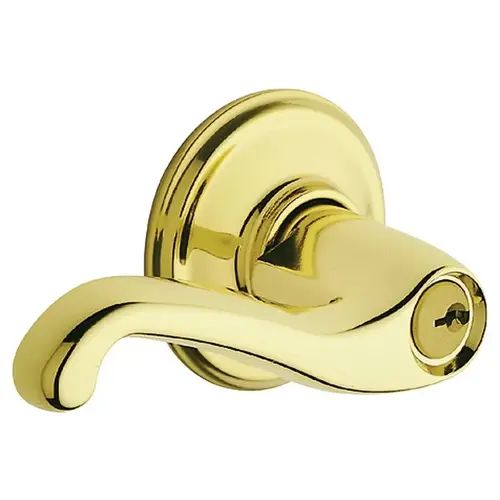

Schlage Residential F51A FLA 605 Flair Series Entry Lever Lockset, Solid Brass, Brass
Item #: F51A FLA 605 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156420285
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Easy 3-Step Installation, Only a Screwdriver Needed
- Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
- Works with right and left swing doors
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Fit standard pre-drilled doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Finishes coordinate easily with plumbing and lighting fixtures
- Use a key from the outside or manually rotate the interior turn button to lock and unlock
- Metal Construction Adds Strength, Security and Durability
- Lifetime Mechanical & Finish Warranty
- Lock and finish backed by limited lifetime warranty
- Self-aligning screw holes make installation easy and hassle-free
- Quality Finishes Coordinate with Plumbing and Lighting
- Certified Commercial Grade 2
- Universal latches slide easily into place and require no tools or manual adjustments
- U.L. Listed: Locks for up to three-hour fire doors available
- Graded excellent in residential security, durability and finish
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Entry (Keyed) Function - Locked by Key & Rotating Cylinder from Outside; Unlocked by Key on Outside or when opened from inside
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
51A-Keyed Entry
Finish
Brass
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Design
Flair Lever
Strike
Full Lip 2-1/4 Inch, Radius Corner
Color Code
605/US3
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Keyblank Grouping
SCHR-C-5-1
Lever Style
FLA-Flair
Finish Description
Bright Polished Brass
Cylinder Type
5-Pin
Keyway
Schlage C
Grade
ANSI/BHMA Grade 2
Handing
Reversible
Projection
2.7188
Door Thickness
1-3/8 to 1-3/4"
Bore Size
2.1250
Product Length
5 Inches
Included Components
Keyed Entry Levers; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
Faceplate Size
1 x 2-1/4"
Strike Type
Full Lip Round Corner
Strike Size
1-5/8 x 2-1/4"
Backset Size
2-3/8 x 2-3/4"
Key Type
Different
Keyway type
C K4
Security Grade
2
Cross Bore Diameter
2-1/8"
Nomenclature
F51A FLA605 FLA ENT K4 BRT BRS
Bolt Throw Size
1"
Edge Bore Diameter
7/8"
Material
Solid Brass
Dimensions
7/8"
Application
Residential; Standard Doors
Width
5.5"
Warranty
Lifetime Limited Mechanical/Finish
Bolt Throw
1/2 Inch
Latch Type
Deadlatch
ADA Compliant
YES
Finish Family
Polished Brass
Bolt Type
Deadlatching
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed; ADA Compliant
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore: 2-1/8"; Edge Bore: 1"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Entry/Entrance/Office
Product Projection
2.7188 Inch
Features
Highest Industry Ratings for Residential Security, Durability and Finish; Installs in Minutes; Reversible Levers
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.25x6x7"
Lever Style Family
Wave Lever
Sub-Series
F51A-FLA
Handle Type
Lever
Throw Length
1"
Item Weight
17.00 lbs per EA
Dimension
4" Lever and 2-1/4" Projection with 2-3/4" Diameter Rose
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
605
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Flair Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Rose Design
Adlen Rose
Standard Latch
16-086: Dead Latch, Dual Option (Round, Drive-in)
Lock Type
Cylindrical
Door Thickness Range
1-3/8" To 1-3/4"
Substrate Type
Zinc and Steel
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Door Handing
Non-Handed
Lever/Knob Design
Flair Lever
Electronic
No
Handle Design
Flair Lever
Keying
None (Select for Less Cylinder Options)
Keyed
Yes
ANSI/BHMA Standards
F81
Product Overview
FLAIR ENTRY LEVER K4 BRT BRASS
Specifications:
Specifications:
Application: For residential single and multi family doors
Dimensions: 7/8"
Material: Brass
For residential single and multi-family doors. Unlocked or locked by keyed lever outside or turn button lever inside, inside lever always unlocked. Zinc based and plated, solid lever designing. Pressure cast zinc tubular lock housing. Key removable outside lever for easy cylinder replacement. Three-piece assembly. All locksets have the same finish for both interior and exterior parts except the Bright Brass finish which has bright brass finish on all interior parts and Ultima Lifetime Anti-Tarnish finish on all exterior parts. Door Prep 2-1/8 in crossbore; 7/8 in or 1 in edge bore; 1 in x 2-1/4 in latch face. Door Thickness 1-3/8 to 1-3/4 in. Cylinder 5-pin tumbler C keyway with nickel silver pins and keys (2). Faceplate 1 in x 2-1/4 in. 2-1/4 in full lip. Bolt 1/2 in throw. ANSI/BHMA meets 400, 000 cycle ANSI A 156.2 Grade 2 requirements. ADA compliant. Fits all doors; 2-3/4 or 2-3/8 in backset; square corner, round corner or drive-in preps.
