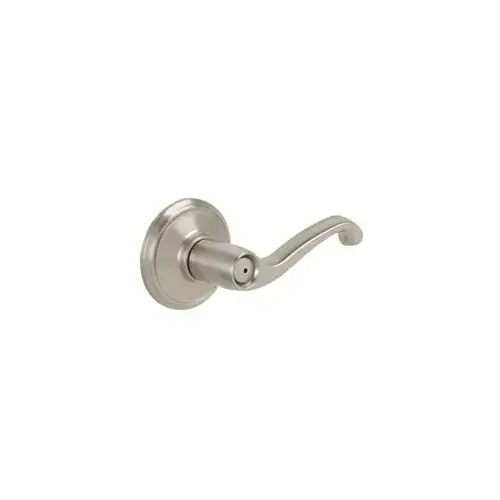

Schlage Residential F40 FLA 619 F40FLA619 16-080 10-027 Flair Privacy - Satin Nickel
Item #: F40 FLA 619 by Schlage Residential
UPC #: 043156794843
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Privacy Locking - Ideal for Bedrooms and Bathrooms
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- U.L. Listed: Locks for up to three-hour fire doors available
- Quality Finishes Coordinate with Plumbing and Lighting
- Bed/Bath (Privacy) Function - Push Button Locking, Turning Inside Knob/Lever Releases Button
- Certified Commercial Grade 2
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
Privacy/Bed/Bath
Finish
Satin Nickel
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Flair Lever
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Grade
ANSI/BHMA Grade 2
Finish Description
Satin Nickel
Lever Style
FLA-Flair
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.5000
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Length
5.0000
Included Components
Privacy Knobs; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
Returnable
Yes
Defective Code
A
Commercial or Residential
Commercial and Residential
Lockset Type
Push Button
Number in Package
1 pk
ADA Compliant
YES
Knob or Lever Bore Hole Diameter
2-1/8"
Indoor or Outdoor
Indoor
Maximum Door Thickness
1-3/4"
Style
Flair
Backset Dimension
2-3/8 or 2-3/4"
Packaging Type
Boxed
Minimum Door Thickness
1-3/8"
Knob style
Lever
Door Direction
Right or Left Handed
Material
Zinc
Knob or Lever Cross Bore Diameter
1"
Each Weight
1.900 LB
Velocity
X
Hazardous Material
No
Strike Size
1-5/8 x 2-1/4 Inch
Security Grade
2
Door Handing
Reversible
Bolt Throw Size
1/2"
Keyway type
C
Faceplate Size
1 x 2-1/4"
Cross Bore Diameter
2-1/8"
Width
13.5"
Cylinder Type
5-Pin
Application
Residential Bedrooms and Bathrooms
Edge Bore Diameter
7/8"
Nomenclature
F40FLA619 PRVCY LVR FLR SAT NI
Strike Type
Radius Corner Full Lip
Warranty
Limited Lifetime Mechanical and Finish Warranty
Backset Size
2-3/8 x 2-3/4"
Bolt Throw
1/2 Inch
ANSI Function
F76
Latch Type
Spring
Finish Family
Satin Nickel
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed; ADA Compliant
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Privacy/Bedroom/Bathroom
Product Projection
2-1/2 Inch
Features
Easy Installation with Phillips Screwdriver; Self-Aligning Screw Holes make Installation Easy and Hassle Free; Universal Latches Slide Easily into Place and Require No Tools or Manual Adjustments
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.25x6x7"
Lever Style Family
Wave Lever
Sub-Series
F40-FLA
Collection
Flair
Package Height
3.25"
Package Length
7"
Package Width
6"
Item Weight
2.1 lbs
Dimension
4" Lever and 2-1/4" Projection with 2-3/4" Diameter Rose
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-3/8" to 1-3/4"
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Flair Lever
No of inners
1
Product Overview
The Schlage Flair Lever Bed and Bath Lock in Satin Nickel is perfect for use on bedroom and bathroom doors where locking is needed. The elegant Flair lever's ornate details are reminiscent of a paper scroll – especially when wrapped in our versatile Satin Nickel finish. Plus, it's been designed and tested with strength and durability in mind.
