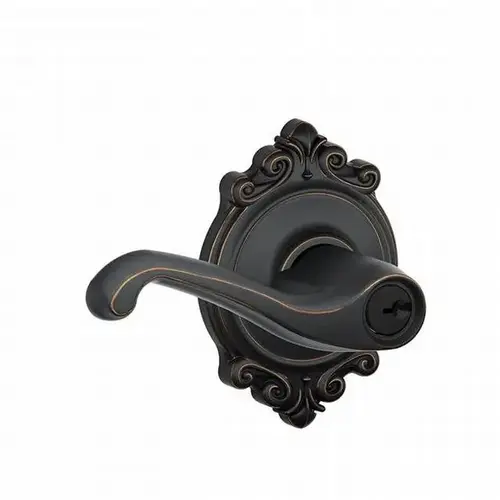

Schlage Residential F51A FLA 716 BRK Flair Lever with Brookshire Rose Keyed Entry Lock C Keyway with 16211 Latch and 10063 Strike Aged Bronze Finish
Item #: F51A FLA 716 BRK by Schlage Residential
UPC #: 043156447947
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Easy 3-Step Installation, Only a Screwdriver Needed
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Metal Construction Adds Strength, Security and Durability
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- Certified Commercial Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Graded Best in Residential Security, Durability, and Finish
- Entry (Keyed) Function - Locked by Key & Rotating Cylinder from Outside; Unlocked by Key on Outside or when opened from inside
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
51A-Keyed Entry
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Flair Lever With Brookshire Rose
Backset
2-3/8 Inch or 2-3/4 Inch
Series
F Series
Finish
Aged Bronze
Color
Antique Bronze
Color Code
643E/US11/716
Grade
ANSI/BHMA Grade 2
Keyway
Schlage C
Cylinder Type
Conventional Cylinder
Finish Description
Aged Bronze
Lever Style
FLA-Flair
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
BRK-Brookshire
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.7188
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Length
5 Inches
Included Components
Keyed Entry Levers; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
Application
Residential; Standard Doors
Warranty
Lifetime Limited Mechanical/Finish
Bolt Throw
1/2 Inch
Strike Type
Radius Corner Full Lip
ADA Compliant
YES
Finish Family
Antique Bronze
Bolt Type
Deadlatching
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed; ADA Compliant
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore: 2-1/8"; Edge Bore: 1"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Entry/Entrance/Office
Product Projection
2.7188 Inch
Features
Highest Industry Ratings for Residential Security, Durability and Finish; Installs in Minutes; Reversible Levers
Strike Size
1-5/8" x 2-1/4"
Latch Type
Deadlatch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.25x6x7"
Lever Style Family
Wave Lever
Sub-Series
F51A-FLA-BRK
Product Overview
F SeriesLever Locks
The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last.
Available Functions: F10/F75 – Hall & Closet*:- Both knobs/levers always unlocked
- Push-button locking
- Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
- Locked by inserting key and rotating cylinder from outside, or manually rotating interior turn-button after exit
- Outside knob/lever fixed. Entrance by key only .
- Inside knob/lever always unlocked
- *Non-keyed Locks
- **Keyed Locks
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Corner with Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Cornerwith Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Round Corner Full Lip Standard
- Square Corner T Strike
- Square Corner Full Lip
- Circular - Adjustable
- Dual Strikes
- (Round & Square Full Lip)
- ANSI Square Corner
- ANSI/BHMA A156 .2-2017 Commercial Grade 2
- ANSI/BHMA A156 .39-2015 Residential Grade AAA
- Available UL Listed for 3-hour fire door
- 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housingdiameter, 1/2" throw,circular drive-in included, universal latch
- 1 5/8" x 2 1/4" radius corner, full lip, no box
- Dual backset latches, fits either 2 3/8" or 2 3/4" backsets
- 5-Pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two per lock, 5-pin, C section
- Locks are furnished with standard features unless otherwise specified. Toorder locks with non-standard features specify non-standard feature desired.
- Lifetime Bright Brass
- Bright Brass (US3)
- Satin Brass
- Antique Brass (US5)
- Oil-Rubbed Bronze (US10B)
- Polished Nickel
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Distressed Nickel
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Aged Bronze
- Non-standard finishes are not available.
- (ACC)
- (AVA)
- (VLA)
- (BIR)
- (BRW)
- (CHP)
- (ELA)
- (FLA)
- (JAZ)
- (LAT)
- (MNH)
- (MER)
- (NBK)
- (SAC)
