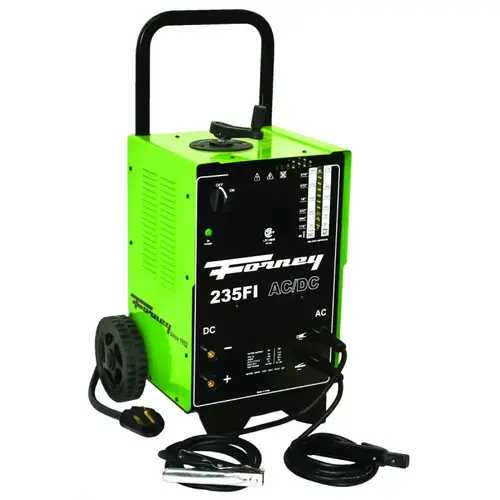

Forney 314 Arc Welder, 230 V Input, 235 A, 1-Phase, 24 ga to 1/2 in Thick, 50 % Duty Cycle
Item #: 314 by FORNEY INDUSTRIES INC
UPC #: 032277003149
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ready to weld right out of the box, only handle assembly required
- AC/DC CC welding from 24 ga to 1/2 in thickness at 45 to 235 A
- Dinse style connection provides easy polarity change and cable repairs
- Larger work envelope
- Illuminated On/Off switch and fan cooling system
Dimensions
12 x 16-1/2 x 30-1/2"
Weight
108 lb
Cable Length
15 ft
Number of Phases
1
Frequency Rating
60 Hz
Nomenclature
314 WELDER ARC AC/DC 230V 180A
Rated Output
235 A
Welded Range
24 ga to 1/2 in Thick
Input Voltage
230 V
Height
16.00
Length
23.00
Width
15.20
Hazardous Material
No
Country Origin Code
IT
Product Overview
WELDER ARC AC/DC230V 180A 57LB
Specifications:
Specifications:
Application: For agriculture, automotive, contractor, DIY and metal fabrication, maintenance and repair applications
Includes: 15 ft Ground Cable and Clamp 15 ft Power Cord 15 ft Welding Cable and Electrode Holder
This welder has a duty cycle of 20% at 230 A, 50% at 150 A AC, 20% at 180 A and 35% at 135 A DC. The electroholder cable is 3 m 25 sq-mm, the earth clamp cable is 2 m 25 sq-mm, both with dense connector. Input cable American wire gauge (AWG) 10, 2.5 mm. 50 A plug. CSA certified Cat #00329, wheel and handle kit for "Forney" 00313 and 00314 must be purchased separately. Weighs 116 lb (52.62 kg).
