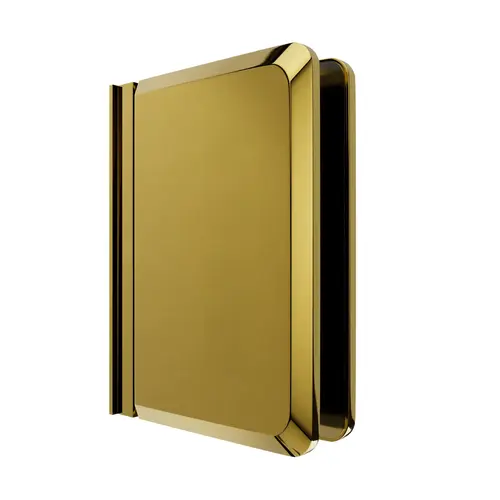

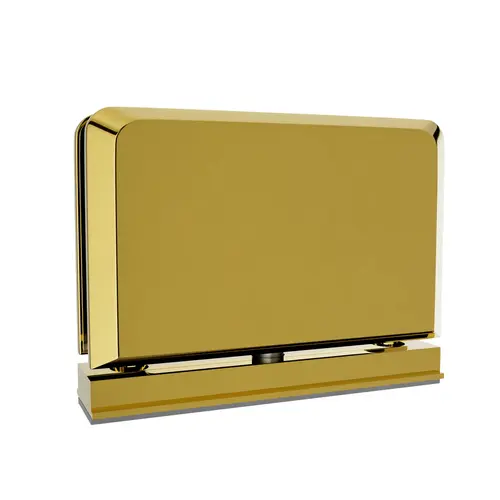

Brixwell H-PIVBGTEFS-PBClick To Copy Adjustable Free Swinging Glass To Header Mount Pivot Hinge Elite Header 3/8" and 1/2" Glass Thickness Polished Brass Finish

The Adjustable Free Swinging Glass to Header Mount Pivot Hinge in Polished Brass finish is designed for frameless shower enclosures that require flexible movement and reliable header mounting. Built from solid forged brass with precision machined stainless steel internal components, this hinge is engineered for strength and performance in shower hardware, glass hardware, and door hardware applications. The hinge features an adjustable mechanism that allows the closing position to be modified up to 90 degree in or out after installation. Using the included 3mm hex wrench, installers can loosen and adjust screws to align the door precisely, then re-tighten to secure. It provides self-centering 0 degree return and self-closing from a 25 degree door angle, supported by dual precision wound stainless steel return springs. Designed specifically for compatibility with Elite Header systems, the hinge connects securely to overhead framing while supporting smooth door operation. It is compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass and requires fabrication cutouts for mounting. Each hinge is rated at 40 lbs, with two hinges supporting doors up to 120 lbs and a maximum width of 36". Dimensional details include glass edge to hole spacing of 1-13/16", end to end hole spacing of 3-1/4", and cutout radius of 3/8" at each corner, with beveled edge profile for clean transitions. For weight guidance, 3/8" glass is 5.05 lbs/sf and 1/2" glass is 6.40 lbs/sf. The polished brass finish complements frameless hinge and pivot hinge applications while coordinating with other shower hardware. Hardware includes matching finish stainless steel mounting screws, crosshead screws, and a hex wrench. Hinge offers self-centering 0 degree return with adjustable closing to 90 degree in or out.
