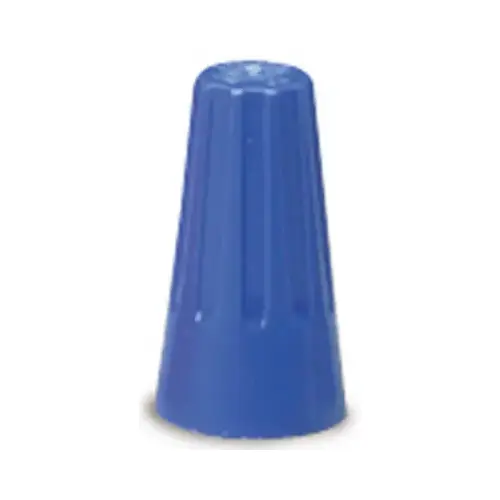

GB 25-002 WireGard -2 Wire Connector, 22 to 16 AWG Wire, Steel Contact, Polypropylene Housing Material, Blue - pack of 25
Item #: 25-002 by ECM Industries LLC
UPC #: 032076002497
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
- Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 221 deg F
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
Wire Type
Copper Wire
Returnable
Yes
UL Listed
Yes
Defective Code
A
Color
Blue
Wire Size
22 to 16 AWG
Number in Package
25 pk
Sub Brand
WireGard
Packaging Type
Boxed
Product Type
Wire Connector
CSA Listed
Yes
Each Weight
0.100 LB
Velocity
A
Hazardous Material
No
Height
4.25"
Length
25/64"
Width
25/64"
ECCN
EAR99
Country Origin Code
US
Mounting Type
Screw
Contact Material
Steel
Contact Coating
Zinc
Nomenclature
25-002 BLUE WIRE CONNECTORS
Housing Material
Polypropylene
Product Overview
CONNECTOR BLUE WIRE
Specifications:
Specifications:
Application: For air conditioners, ceiling fans, doorbells, indoor lighting, switches, thermostats, ballasts, large and small appliances
WireGard twist-on wire connectors are designed for general-purpose applications requiring the connection of 2 or more copper wires. WireGard connectors feature a straight type polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity. These all-purpose connectors require fewer turns to meet required torque and meet or exceed UL pull out and dielectric test requirements. The tough thermoplastic shell shields against environmental extremes and resists chemical action from hydrocarbons, diluted acid or alkaline solutions. The high-dielectric shell also features a deep skirt design to prevent exposure of bare wire. Flame-retardant properties resist heat distortion up to 105 deg C. Color coded for quick and easy size selection.
