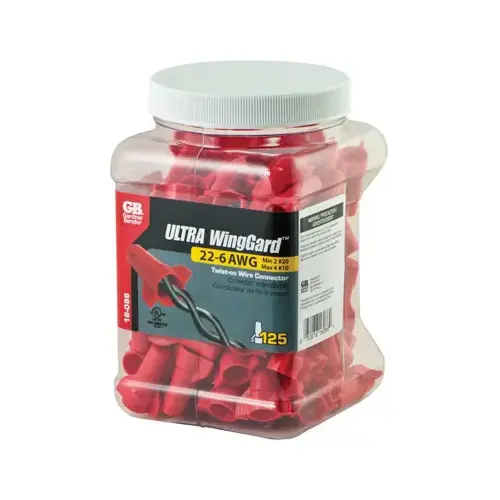

GB 16-086N WingGard 86 Wire Connector, 22 to 6 AWG Wire, Steel Contact, Thermoplastic Housing Material, Red - pack of 125
Item #: 16-086N by ECM Industries LLC
UPC #: 032076160869
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
- Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 221 deg F
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
Wire Type
Copper Wire
Returnable
Yes
UL Listed
Yes
Defective Code
A
ETL Listed
No
Color
Red
Wire Size
22 to 6 AWG
Number in Package
125 pk
Sub Brand
WingGard
Packaging Type
Boxed
Product Type
Wire Connectors
CSA Listed
Yes
Each Weight
0.830 LB
Velocity
B
Hazardous Material
No
Alternative UPC
032076160869
Height
6.125"
Length
1-1/4"
Width
29/32"
Brand
GARDNER BENDER
ECCN
EAR99
Country Origin Code
CN
Mounting Type
Screw
Warranty
1 Year
Contact Material
Steel
Contact Coating
Zinc
Nomenclature
16-086 RED TWST WIRE CONNECTOR
Housing Material
Thermoplastic
Product Overview
CONNECTOR WIRE TWIST RED 125PC
Specifications:
Specifications:
Warranty: 1 Year
GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
