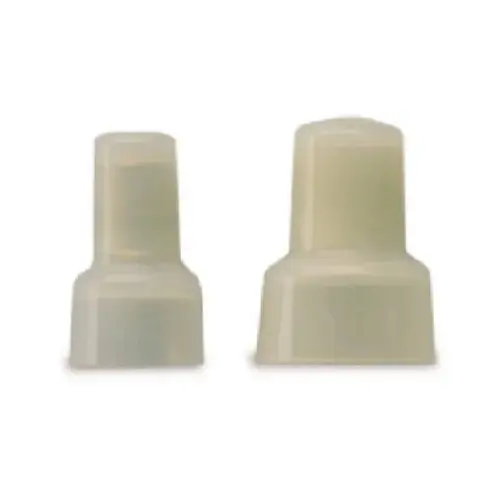

GB 20-090 Crimp Connector, 22 to 10 AWG Wire, Copper Contact, Nylon Housing Material, White - pack of 10
Item #: 20-090 by ECM Industries LLC
UPC #: 032076050245
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Translucent nylon insulation is corrosion and chemical-resistant
- Tin-plated copper sleeve
- Seamless copper construction
- Designed for use with solid or stranded wire
- Vibration-resistant
Returnable
Yes
UL Listed
Yes
Defective Code
A
Color
White
Wire Size
22 to 10 AWG
Number in Package
10 pk
Packaging Type
Clamshell
End Type
Closed End
Product Type
Pigtail Crimp Connector
CSA Listed
Yes
Each Weight
0.100 LB
Velocity
B
Hazardous Material
No
Height
4.38"
Length
0.63
Width
3.75
ECCN
EAR99
Country Origin Code
TW
Contact Material
Copper
Contact Coating
Tin
Nomenclature
20-090 NYLON PIGTAILS 22-10
Housing Material
Nylon
Material
Nylon
Wire Type
Insulated Wire
Product Overview
CONNECTOR PGTAIL NYLN 22-10AWG
Specifications:
Specifications:
Application: For applications requiring vibration resistance
Closed end connectors are ideal for making a simple connection of two or more wires to create a pigtail connection. The pigtail connector is a closed end, crimp on wire connector used to secure electrical connection points. The proper installation method is to connect the wires together first and then add a pigtail connector and crimp tight to provide a safe, secure and stable connection particularly in applications subject to vibration. Designed to be used with both solid and stranded wire these closed end connectors feature a tin-plated seamless copper sleeve with translucent nylon insulation. Connector rated for #22 to #10 AWG applications up to 300 V.
