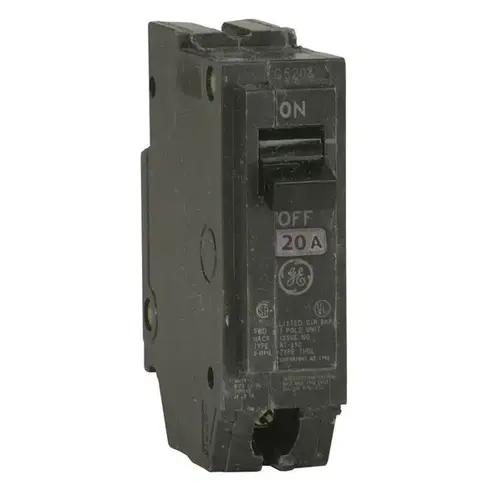

General Electric THQL1120 Feeder Circuit Breaker, Type THQL, 20 A, 1 -Pole, 120/240 V, Plug Mounting
Item #: THQL1120 by General Electric Company
UPC #: 783164012866
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Breaker case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Voltage
120
Mounting Type
Plug
Warranty
One year warranty from first use
Certifications
UL
Amperage
20 Amp
Phase
1
Manufacturer Warranty
Lifetime Warranty
Breaker Type
Single Pole
Certifications and Listings
UL Listed
Maximum Amperage
20
Number of Poles
1
Product Depth (in.)
1
Product Height (in.)
3
Product Width (in.)
3.375
Pack Size
1
Height
3.75
AMPS
20 Amps
Volts
120/240 V
Depth
2.4"
Width
3.00
UL Listed
Yes
Packaging Type
Bulk
Indoor or Outdoor
Indoor
Breakers Included
Yes
Circuit Protection Type
Standard
CSA Listed
No
Defective Code
A
Each Weight
0.300 LB
Hazardous Material
No
Returnable
Yes
Sub Brand
Q-Line
Velocity
A
Product Type
Circuit Breaker
UNSPSC
39121601
Length
1.00
ECCN
EAR99
Country Origin Code
US
Dimensions
3.28 in L x 1 in W x 2.38 in H
Type
Type THQL
Operating Temperature
60 to 75 deg C
Wire Size
14 to 8 12 to 8 AWG
Number of Phases
1
Terminal Type
Screw Clamp
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Non-Interchangeable
Nomenclature
THQL1120 GE INTRCHG BRKR 1P20A
Actuator Type
Quick-Make Quick-Break
Current Rating
20 A
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Type THQL 1 in per pole. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger and Crouse-Hinds. 15 to 30 A 14 to 8 Cu or 12 to 8 Al AWG wire, 35 to 60 A 8 to 3 Cu or 8 to 2 Al AWG wire. UL listed, HACR rated. 1 in module, 120/240 V, 10,000 AIR.
