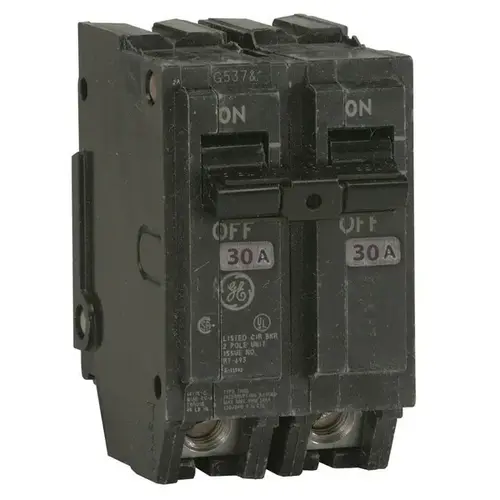

General Electric THQL2130 Feeder Circuit Breaker, Type THQL, 30 A, 2 -Pole, 120/240 V, Plug Mounting
Item #: THQL2130 by General Electric Company
UPC #: 783164012927
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Voltage
240
Mounting Type
Plug
Warranty
One year warranty from first use
Certifications
UL
Amperage
30 Amp
Phase
1
Manufacturer Warranty
Lifetime Warranty
Breaker Type
Double Pole
Certifications and Listings
UL Listed
Maximum Amperage
30
Number of Poles
2
Product Depth (in.)
3
Product Height (in.)
3
Product Width (in.)
3.375
Pack Size
1
UNSPSC
39121601
Terminal Type
Screw Clamp
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Non-Interchangeable
Nomenclature
THQL2130 GE 2IN QLN BRKR 2P30A
Actuator Type
Quick-Make Quick-Break
Current Rating
30 A
Dimensions
3.28 in L x 2 in W x 2.38 in H
Type
Type THQL
Operating Temperature
60 to 75 deg C
Wire Size
14 to 8 12 to 8 AWG
Number of Phases
1
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
