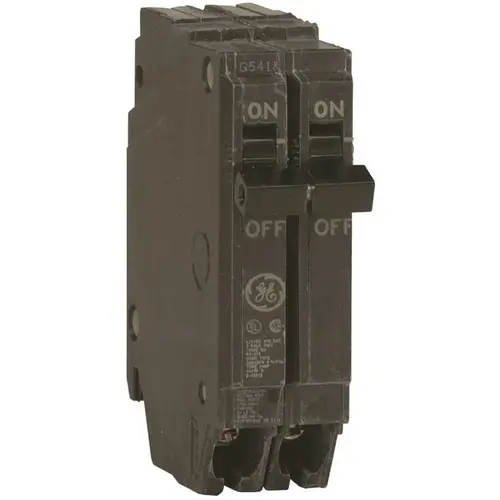

General Electric THQP250 Feeder Circuit Breaker, Type THQP, 50 A, 2 -Pole, 120/240 V, Plug Mounting
Item #: THQP250 by General Electric Company
UPC #: 783164085778
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Voltage
240
Mounting Type
Plug
Warranty
One year warranty from first use
Certifications
UL
Amperage
50 Amp
Phase
1
Manufacturer Warranty
Lifetime Warranty
Breaker Type
Double Pole
Certifications and Listings
UL Listed
Circuit Breaker Type
Thin
Maximum Amperage
50
Number of Poles
2
Product Depth (in.)
1
Product Height (in.)
3
Product Width (in.)
3.375
Pack Size
1
Height
1.00
AMPS
50 amps
Volts
120/240 V
Depth
2.4"
Width
2.90
UL Listed
Yes
Packaging Type
Bulk
Indoor or Outdoor
Indoor
Breakers Included
Yes
Circuit Protection Type
Standard
CSA Listed
Yes
Defective Code
A
Each Weight
0.370 LB
Hazardous Material
No
Returnable
Yes
Sub Brand
Q-Line
Velocity
B
Product Type
Circuit Breaker
UNSPSC
39121601
Length
3.30
ECCN
EAR99
Country Origin Code
US
Dimensions
3.28 in L x 1 in W x 2.58 in H
Type
Type THQP
Operating Temperature
60 to 75 deg C
Wire Size
8 to 4 AWG
Number of Phases
1
Terminal Type
Lug
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Non-Interchangeable
Nomenclature
THQP250 GE BREAKR1/2IN 50A 2P
Actuator Type
Toggle
Current Rating
50 A
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A 8 to 4 Cu or 8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
