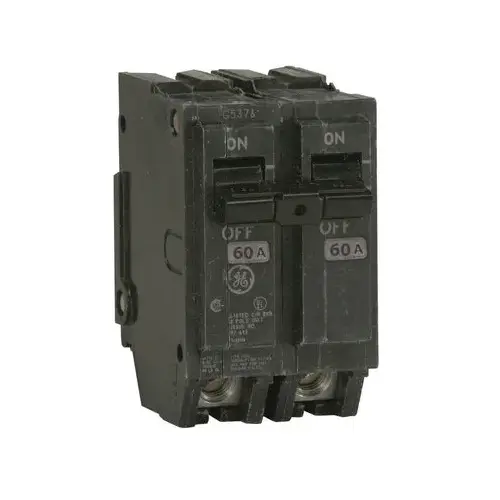

General Electric THQL2160 Feeder Circuit Breaker, Type THQL, 60 A, 2 -Pole, 120/240 V, Plug Mounting
Item #: THQL2160 by General Electric Company
UPC #: 783164048483
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Voltage
240
Mounting Type
Plug
Warranty
One year warranty from first use
Certifications
UL
Amperage
60 Amp
Phase
1
Manufacturer Warranty
Lifetime Warranty
Breaker Type
Double Pole
Certifications and Listings
UL Listed
Maximum Amperage
60
Number of Poles
2
Product Depth (in.)
3
Product Height (in.)
3
Product Width (in.)
3.375
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
3.75
Defective Code
A
Breakers Included
Yes
Width
3.00
Circuit Protection Type
Standard
Sub Brand
Q-Line
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Bulk
Depth
2.38"
Product Type
Circuit Breaker
AMPS
60 amps
CSA Listed
No
Each Weight
0.640 LB
Velocity
B
Hazardous Material
No
UNSPSC
39121601
Length
2.00
ECCN
EAR99
Country Origin Code
US
Current Rating
60 A
Number of Phases
1
Wire Size
8 to 3 8 to 2 AWG
Operating Temperature
60 to 75 deg C
Type
Type THQL
Dimensions
3.28 in L x 2 in W x 2.38 in H
Actuator Type
Quick-Make Quick-Break
Trip Sensitivity
600 A
Nomenclature
THQL2160 GE INTRCHG BRKR 2P60A
Trip Type
Non-Interchangeable
Operating Frequency
50/60 Hz
Interrupt Rating
10 kA
Terminal Type
Lug
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
