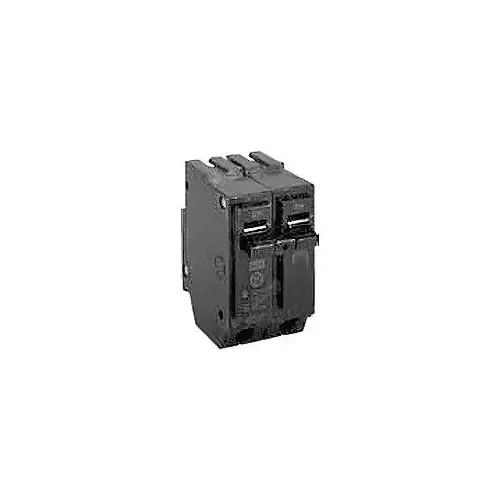

General Electric THQL2190 Feeder Circuit Breaker, Type THQL, 90 A, 2 -Pole, 120/240 V, Plug Mounting
Item #: THQL2190 by GE ELECTRICAL
UPC #: 783164099225
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Trip Sensitivity
900 A
Wire Size
6 to 1/0 4 to 1/0 AWG
Trip Type
Non-Interchangeable
Mounting Type
Plug
Operating Temperature
60 to 75 deg C
Type
Type THQL
Operating Frequency
50/60 Hz
Current Rating
90 A
Actuator Type
Quick-Make Quick-Break
Terminal Type
Lug
Interrupt Rating
10 kA
Dimensions
3.28 in L x 2 in W x 2.38 in H
Number of Poles
2
Nomenclature
THQL2190 GE INTRCHG BRKR 2P90A
Number of Phases
1
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
