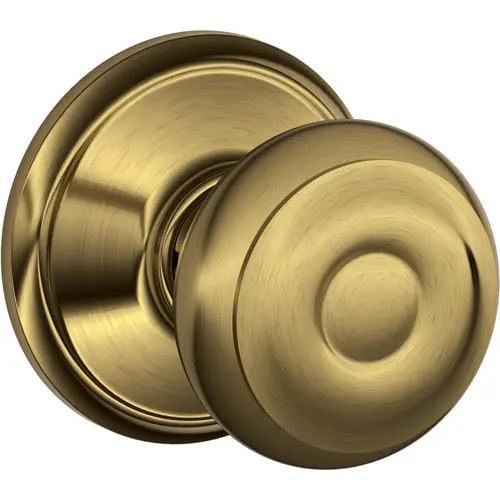

Schlage Residential F10 GEO 609 F10GEO609 16-080 10-027 Georgian Passage - Antique Brass
Item #: F10 GEO 609 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156988174
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Easy 3-Step Installation, Only a Screwdriver Needed
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Quality Finishes Coordinate with Plumbing and Lighting
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Graded excellent in residential security, durability and finish
- Lifetime Mechanical & Finish Warranty
- U.L. Listed: Locks for up to three-hour fire doors available
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Certified Commercial Grade 2
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Antique Brass
Function
Passage/Hall/Closet
Series
F Series
Design
Georgian Knob
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color
Satin Brass Blackened Satin Relieved Clear Coated
Color Code
609/US5
Warranty
Limited lifetime
Pack Size
1
Assembled Depth (in.)
2.31
Assembled Height (in.)
2.75
Assembled Width (in.)
2.75
Backset size (in.)
Adjustable
Certifications and Listings
ANSI Certified
Door Locks & Knobs Product Type
Passage Knobs
General Material
Metal
Hardware Finish Family
Brass
Knob Diameter (in.)
2.09
Knob style
GEO-Georgian
Security/ANSI Grade
ANSI Grade 2 (Better)
Strike width (in.)
1.63
ADA Compliant
No
Lock Type
Unkeyed
Grade
ANSI/BHMA Grade 2
Finish Description
Antique Brass
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.3125
Door Thickness
1-3/8 to 1-3/4"
Knob Diameter
2.1250
Bore Size
2.1250
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
8.1400
Box Width
4.3700
Box Height
3.0600
Security Grade
2
Returnable
Yes
Defective Code
A
Commercial or Residential
Commercial and Residential
Drill Resistant
No
Indoor or Outdoor
Indoor
Maximum Door Thickness
1-3/4"
Style
Georgian
Packaging Type
Boxed
Faceplate Material
Brass
Minimum Door Thickness
1-3/8"
Trim Rings
No
Material
Metal
Each Weight
1.160 LB
Velocity
X
Hazardous Material
No
UNSPSC
46171500
Lever/Knob Design
Georgian Knob
Strike Size
1-5/8 x 2-1/4"
Cross Bore Diameter
2-1/8"
Key Type
Not Keyed
Type
Hall and Closet Lock
Application
Residential Single and Multi-Family Doors
Nomenclature
F10GEO609 GEO PASS ANT BRASS
Strike Type
Full Lip Radius Corner
Backset Size
2-3/8 x 2-3/4"
For Door Thickness
1-3/8" to 1-3/4"
Strike Number
10-027
Manufacturer Parent
Allegion
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
F10-GEO
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Product Height
2-3/4 Inch
Box Dimensions (L x W x H)
3.06x4.37x8.14"
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed
Product Projection
2-5/16 Inch
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Bolt Throw
1/2 Inch
Strike Name
Round Corner Full Lip
Finish Family
Antique Brass
Length
18.0"
Adjustable Backset
Yes
Backset Length
2-3/8"
Sub Brand
Georgian
Collection
Georgian
Package Height
3.25"
Package Length
7"
Package Width
6"
Item Weight
1.45 lbs
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" Rose
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-3/8" to 1-3/4"
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
609
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Georgian Knob
No of inners
1
ANSI/BHMA Standards
F75
Keyed
No
Handle Type
Knob
Handle Design
Georgian Knob
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Standard Latch
16-080: Spring Latch, Dual Option (Round, Drive-in)
Rose Design
Alden Rose
Product Overview
The Schlage Georgian Knob Hall and Closet Lock in Antique Brass is perfect for use on doors where locking is not needed. The modest Georgian knob features symmetrical detailing throughout, and looks especially warm and inviting when wrapped in our classic Antique Brass finish. Plus, it's been designed and tested with strength and durability in mind.
