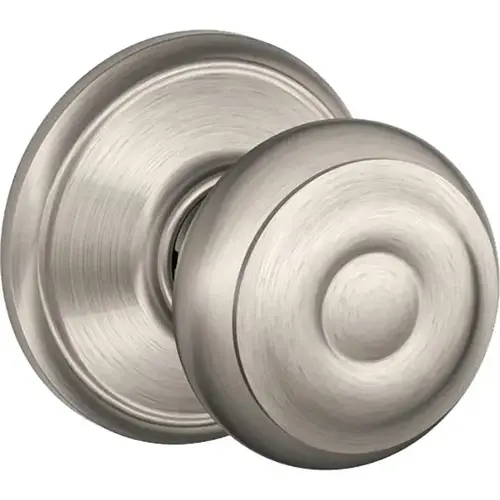

Schlage Residential F10 GEO 619 Georgian Series Passage Door Knob, Metal, Satin Nickel
Item #: F10 GEO 619 by Schlage Residential
UPC #: 043156999347
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Non-locking, ideal for closets and rooms where locking is not needed
- Easy 3-Step Installation, Only a Screwdriver Needed
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Quality Finishes Coordinate with Plumbing and Lighting
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Graded excellent in residential security, durability and finish
- Lifetime Mechanical & Finish Warranty
- U.L. Listed: Locks for up to three-hour fire doors available
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Satin Nickel
Function
10-Hall/Closet
Design
Georgian Knob
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Grade
ANSI/BHMA Grade 2
Finish Description
Satin Nickel
Knob style
GEO-Georgian
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.3125
Door Thickness
1-3/8 to 1-3/4"
Knob Diameter
2.1250
Bore Size
2.1250
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
8.1400
Box Width
4.3700
Box Height
3.0600
Returnable
Yes
Defective Code
A
Knob or Lever Throw Length
18"
Commercial or Residential
Residential
Drill Resistant
No
Lockset Type
Not Keyed
Number in Package
1 pk
ADA Compliant
No
Indoor or Outdoor
Indoor and Outdoor
Maximum Door Thickness
1-3/4"
Style
Georgian
Backset Dimension
2-3/8"
Packaging Type
Boxed
Number of Keys Included
2
Faceplate Material
Nickel
Minimum Door Thickness
1-3/8"
Door Direction
Right or Left Handed
Material
Metal
Each Weight
1.300 LB
Velocity
X
Hazardous Material
No
Strike Type
Full Lip Radius Corner
Strike Size
1-5/8 x 2-1/4"
Backset Size
2-3/8 x 2-3/4"
Key Type
Not Keyed
Security Grade
2
Cross Bore Diameter
2-1/8"
Nomenclature
F10GEO619 GEO PASS STN NICKEL
Application
Residential Single and Multi-Family Doors
Length
18.0"
Type
Hall and Closet Lock
Warranty
Limited Lifetime Mechanical and Finish Warranty
Height
7.00
Width
6.00
Country Origin Code
CN
For Door Thickness
1-3/8" to 1-3/4"
Strike Number
10-027
Manufacturer Parent
Allegion
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
F10-GEO
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Product Height
2-3/4 Inch
Box Dimensions (L x W x H)
3.06x4.37x8.14"
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed
Product Projection
2-5/16 Inch
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Bolt Throw
1/2 Inch
Strike Name
Round Corner Full Lip
Finish Family
Satin Nickel
ECCN
EAR99
Sub Brand
Georgian
Specifications:
Application: For residential single and multi-family doors
Warranty: Limited Lifetime
Includes: (2) Keys
For residential single and multi-family hall/closet doors. Both knobs always unlocked. 1-Piece knob. Solid brass trim and all metal parts. 3-Piece assembly. Fits all doors, 2-3/4 in or 2-3/8 in backset, 1-1/8 in square corner, 1/4 in round corner or circular drive in preps.
