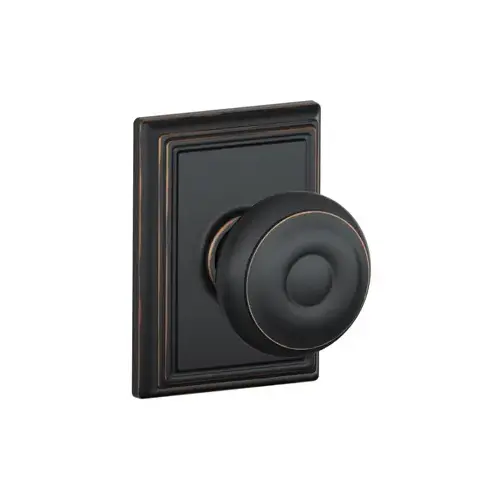

Schlage Residential F10 GEO 716 ADD F10GEO716ADD 16-080 10-027 Georgian / Addison Passage - Aged Bronze
Item #: F10 GEO 716 ADD by Schlage Residential
UPC #: 043156149292
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Easy 3-Step Installation, Only a Screwdriver Needed
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Aged Bronze
Function
Passage/Hall/Closet
Series
F Series
Design
Georgian Knob With Addison Rose
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color
Antique Bronze
Color Code
643E/US11/716
Grade
ANSI/BHMA Grade 2
Finish Description
Aged Bronze
Knob style
GEO-Georgian
Rose/Escutcheon Trim
ADD-Addison
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.3125
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.1250
Bore Size
2.1250
Product Height
2-3/4 Inch
Product Length
7.0000
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
For Door Thickness
1-3/8" to 1-3/4"
Strike Size
1-5/8 x 2-1/4 Inch
Strike Number
10-027
Manufacturer Parent
Allegion
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
F10-GEO-ADD
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
ADA Compliant
No
Application
Residential Single and Multi-Family Doors
Box Dimensions (L x W x H)
3.25x6x7"
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed
Product Projection
2-5/16 Inch
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Strike Type
Radius, Full Lip
Bolt Throw
1/2 Inch
Warranty
Limited Lifetime Mechanical and Finish Warranty
Strike Name
Round Corner Full Lip
Finish Family
Antique Bronze
Collection
Georgian
Package Height
4"
Package Length
7"
Package Width
6"
Item Weight
2.5 lbs
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" x 4" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Addison Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
716
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Georgian Knob
No of inners
1
Product Overview
The Schlage Georgian Knob with Addison Trim Hall and Closet Lock in Aged Bronze is perfect for use on doors where locking is not needed. The modest Georgian knob features symmetrical detailing throughout, while the Addison trim's distinguished look incorporates subtle details without losing its classic simplicity. Our Aged Bronze finish is inspired by traditional design, featuring warm, copper tones that break through its darker, aged exterior. Plus, it's been designed and tested with strength and durability in mind.
