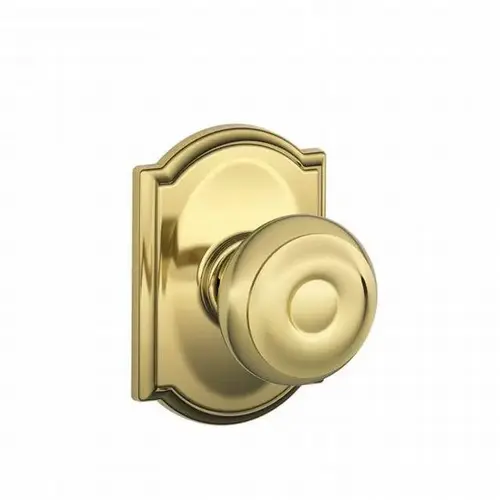

Schlage Residential F10 GEO 505 CAM Georgian Knob with Camelot Rose Passage Lock with 16080 Latch and 10027 Strike Lifetime Brass Finish
Item #: F10 GEO 505 CAM by Schlage Residential
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Easy 3-Step Installation, Only a Screwdriver Needed
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Lifetime Brass
Function
Passage
Series
F Series
Design
Georgian Knob With Camelot Rose
Strike
Round Corner Full Lip Strike
Backset
Dual Option, Round or Drive In, Adjustable Spring Latch, 2-3/8" or 2-3/4" Backset
Color Code
505
Handing
Reversible
For Door Thickness
1-3/8" to 1-3/4"
Strike Size
1-5/8 x 2-1/4 Inch
Strike Number
10-027
Manufacturer Parent
Allegion
Finish Description
Bright Polished Brass
Faceplate Dimension
1" x 2-1/4"
Latch Throw
1/2 Inch
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Grade
ANSI/BHMA Grade 2
Sub-Series
F10-GEO-CAM
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
ADA Compliant
No
Front Size
1" x 2-1/4"
Door Cross Bore
2.125 Inch
Product Height
2-3/4 Inch
Application
Residential Single and Multi-Family Doors
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed
Door Thickness
1-3/8" to 1-3/4"
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
CAM-Camelot
Product Projection
2-5/16 Inch
Knob style
GEO-Georgian
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Product Material
Zinc
Strike Type
Radius, Full Lip
Bolt Throw
1/2 Inch
Warranty
Limited Lifetime Mechanical and Finish Warranty
Strike Name
Round Corner Full Lip
Included Components
Passage Knobs/Levers, Roses, Latch, Strike, Mounting Hardware
Finish Family
Polished Brass
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" x 4-1/8" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Camelot Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
505
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Georgian Knob
No of inners
1
Product Overview
Passage Latch, Georgian Knob, Camelot Rose, Lifetime Brass
Schlage believes that the "finishing touch" is just as important as the first. Which is why we make distinctive door hardware designed to match your personal style. From classic looks that never go out of style to bold contemporary designs, our door knobs fit and accentuate virtually any dcor.
Quality materials and construction.
