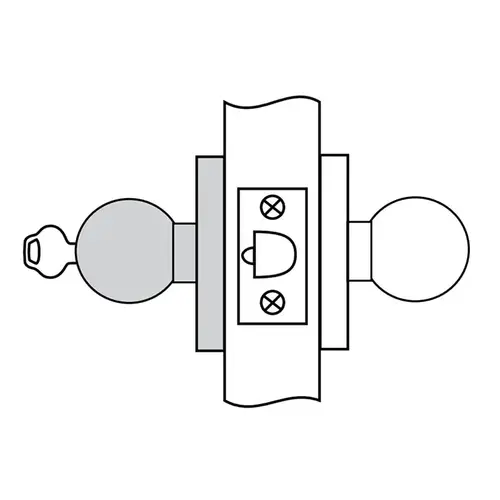

CK4457 Storeroom Lockset, Satin Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Corbin Russwin CK4457 GWC 630 CK4457 Storeroom Lockset, Satin Stainless Steel

Item #: CK4457 GWC 630 by Corbin Russwin

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$267.52

/each
SAVE UP TO 26.75
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing Field reversible.
  • Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.
  • Backset 2-3/4" (70mm) standard. Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm).
  • Lock Chassis Steel, zinc dichromated for corrosion resistance.
  • Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard. Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Optional fronts available
  • Latchbolt Brass or stainless steel, 1/2" (13mm) throw.
  • Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed.
  • Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.
  • Cylinder Brass, 6-pin L4 keyway, 0-bitted standard.
  • Keying Features Available Master keying Construction master keying
  • Keys Two nickel silver standard.
  • Warranty One-year limited.

Thickness

1-3/8" - 1-3/4"

Strike Number

SA114

Package Volume

171

Latch Number

574F55

Color

Satin Stainless Steel

Function

57-Storeroom/Closet

Latch Type

Deadlocking

ANSI Function

F86

Hand

Reversible

Grade

ANSI/BHMA Grade 2

Fire Rated

3 Hours {A}

Special Marks

Conventional cylinder, Fire rated 3 Hours {A}

Key(s)

Blank

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Cylinder Type

Conventional Cylinder

Lock Face Size

2-1/4" x 1-1/8"

Package Qty

1

Package Height

4"

Screws

Combination

Keying

0 Bitted

Package Width

4.5"

Bolt Protection

1/2"

Color Code

630/US32D

Strike Type

ANSI Curved Lip

Rose/Escutcheon Design

C - Rose

Base Material

Stainless Steel

Keyway

Corbin Russwin L4

Strike Height

4-7/8"

Lever/Knob Design

GW - Global

Package Length

9.5"

Finish

Satin Stainless Steel

Backset

2-3/4 Inch

Finish Description

Satin Stainless Steel

Knob style

GWC-Global

Keyblank Grouping

CRRS-L4-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Series

CK4400 Series

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Projection

2.6250

Door Thickness

1-3/8" - 1-3/4"

Knob Diameter

2.2500

ADA Approved

False

Keying Charges

CCAM

Bore Size

2.1250

Strike Size

4-7/8" x 1-1/4" x 1-1/4"

Manufacturer Parent

Assa Abloy

Knob/Lever Size

2-1/8 Inch

Handing

Reversible

Latch Throw

1/2 Inch

Knob Style Family

Ball Knob

Function Description

Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.

Sub-Series

CL_Cylindrical_Locks_corbin_russwin_26

ADA Compliant

No

Front Size

2-1/4" x 1-1/8"

Handle Type

Knob

Door Cross Bore

2.125 Inch

Application

Ideal for Quality Residential and Light Commercial Buildings; Such As Fine Homes; Apartments; Motels; Offices

Function Family

Storeroom

Standards

ANSI/BHMA A156.2; UL/cUL Listed

Rose Diameter

3 Inch

Cylinder Material

Brass

Product Projection

2-5/8 Inch

Features

Adjustable Latchbolts Accommodates Flat and Beveled Doors; Outstanding Combination of Value and Performance

Warranty

1 year limited

Keying Type

Keyed Random

Cylinder Type Used

Conventional

Strike Lip

1-1/4 Inch

Finish Family

Stainless Steel

Product Overview
CK4400 SeriesStandard-Duty Cylindrical Knob Locksets

An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as: Fine homes, Apartments, Motels and Offices.

Advantages

Wide array of functions

Precision manufactured mechanisms, zinc dichromated for corrosion resistance

Stainless steel latchbolt for long life

Adjustable latchbolts accommodates flat and beveled doors

Stainless steel trim available

Certification/Compliance:ANSI/BHMA:
  • Certified and meets A156.2 Series 4000, Grade 2
Federal:
  • Meets FF-H-106C
  • UL-cUL
UL/ULC:
  • All locks with listed for A label and lesser class single doors, 4' x 8'
  • Letter F and UL symbol on latch front indicate listing
Specifications: Handing:
  • Field reversible
Door Thickness:
  • 1-3/8" (35mm) - 1-3/4" (44mm) standard
Backset:
  • 2-3/4" (70mm) standard
Lock Chassis:
  • Steel, zinc dichromated for corrosion resistance
Front:
  • Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard. Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
Latchbolt:
  • Brass or stainless steel, 1/2" (13mm) throw
Auxiliary Latchbolt:
  • Deadlocking latchbolt prevents manipulation when door is closed
Strike:
  • Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center
Cylinder:
  • Brass, 6-pin L4 keyway, 0-bitted standard
Keying Features Available:
  • Master keying
  • Construction master keying
Keys:
  • Two nickel silver standard
Warranty:
  • One-year limited
Finishes:
  • ANSI/BHMA 605 (US3) Bright Brass
  • ANSI/BHMA 612 (US10) Satin Bronze
  • ANSI/BHMA 613 (US10B) Oxidized Bronze, Oil Rubbed
  • ANSI/BHMA 629 (US32) Bright Stainless Steel
  • ANSI/BHMA 630 (US32D) Satin Stainless Steel
