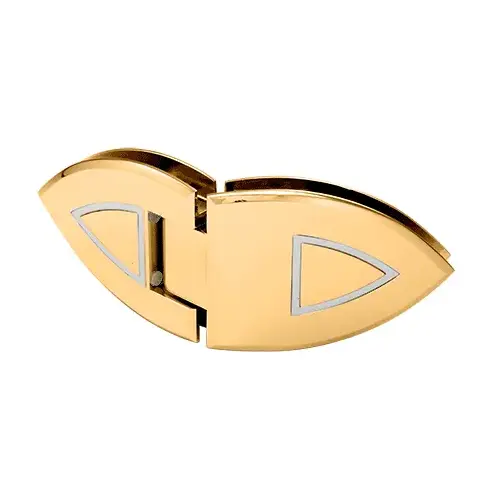

CRL CAT045GP Gold Plated with Polished Chrome Accents Cathedral 045 Series 135 degree Glass-to-Glass Hinge
Item #: CAT045GP by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Unique Two-Tone Design
- 135º Glass-to-Glass
Height
3-1/2" (89 mm)
Width
8-1/2" (216 mm)
Finish
Gold Plated
Product Overview
The CRL Cathedral Series Hinge combines a unique two-tone accent design (for most models) with a positive hold cut-out and through-stud system. Cathedral offers the same internal mechanism as our popular Geneva Series, and contains a Reversible Pivot Pin for optional 5º tighter door closure. The "GENP1N" Custom Pivot Pin is available for "off-angle" installations.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 95 lbs. (43 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 38" (965 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Most models have a unique two-tone design that provides design flexibility when attempting to match split finish color décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 95 lbs. (43 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 38" (965 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Most models have a unique two-tone design that provides design flexibility when attempting to match split finish color décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
