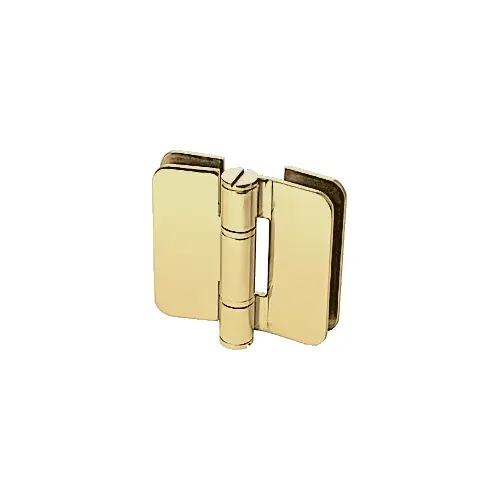

CRL ALUM-ZUR07GP-VCP-1 Gold Plated Zurich 07 Series Glass-to-Glass Inline Outswing Hinge
Item #: ALUM-ZUR07GP-VCP-1 by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Glass-to-Glass Inline Outswing
- Ideal for Bi-Fold Application
Using 2 Hinges
5/16" (8 MM) or 3/8" (10 MM) GLASS 100 lbs/45 kg 36"/914 mm
Using 3 Hinges
5/16" (8 MM) or 3/8" (10 MM) GLASS 150 lbs/68 kg 40"/1016 mm
Height
3-1/8" (79 mm)
Width
1-3/16" (30 mm)
Finish
Gold Plated
Product Overview
The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in several finishes. In addition, screws and washers are interchangeable for a special design accent. Only two holes per Hinge per panel are required, with no cut-out necessary.
Screw and Washer Accent Kit:Interchangeable Screws and Washers for Zurich Series Hinges let you add a special highlighting accent to the installation (e.g., Cat. No. ZUR70). Available in four finishes: Brass, polished stainless, satin stainless, and gold plated.
NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
Construction: Stainless Steel or Solid Brass
Hinge Swings: See descriptions next to photos of hinges.
Closing Type: Free Swinging
Two Holes Required Per Hinge Per Panel (No Cut-Out)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use.
