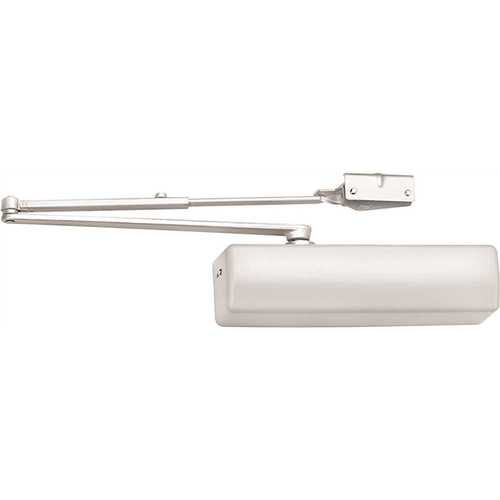

Grade 1 Parallel Arm Adjustable Door Closer with Sex Nuts and Bolts Aluminum Finish

Roll over image to zoom in

Corbin Russwin DC3210 689 M54Click To Copy Grade 1 Parallel Arm Adjustable Door Closer with Sex Nuts and Bolts Aluminum Finish

Item #: DC3210 689 M54 by Corbin Russwin

UPC #: 840067638941

See reviewsSee reviews
See reviews summary
In Stock

$429.83

/each
SAVE UP TO 42.98

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 478 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements
  • Compliance with building and barrier-free codes
  • Compliance with Building and Barrier Free Codes
  • Up to full 180° door opening
  • Up to Full 180 Degree Door Opening
  • One Piece Seamless Steel Spring Tube Seals in Hydraulic Fluid
  • One-piece seamless steel spring tube seals in hydraulic fluid
  • Tapered valves allow precise adjustment
  • Tapered Vales Allow Precise Adjustment
  • Cast iron body
  • Quik-Install™ mounting bracket speeds installation, reducing cost and errors
  • Five-year limited warranty
  • UL10C, UBC
  • Powder painted arms and retrofit plates

Finish

Aluminum Painted

Series

DC3200 Series

Back Check

Adjustable

Package Volume

392.9492188

Color

Aluminum Painted

Screw Type

Self Tapping

Bracket

Available

Case Width

7.75"

Spacer

Available

Sealed Closer

Yes

Drop Plate

Available

Hand

Non-Handed

Grade

ANSI/BHMA Grade 1

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines

Physically Handicapped

Yes

Cover

Full

Degree Swing

180 Deg.

Type

Surface

Through Bolts

Yes

Case Length

15"

Cement Case

No

Package Qty

1

Package Height

3.875"

Voltage

Mechanical

Hold Open

Without Hold Open

Case Height

14.25"

Mounting Location

Push or Pull Side

Package Width

7.375"

Case Volume

1656.5625

Color Code

689/US28

Mounting Style

Tri Mount

Base Material

VARIES

Special Rust Inhibitor

No

Package Length

13.75"

Cold Weather Fluid

Yes

Arm Type

Double Lever Arm with PA Bracket

Closer Size

Adj. 1 to 6

Spring Size

1-6

Function

Tri-Packed Non-Hold Open Arm

Mount

Push or Pull Side

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

UNSPSC

31162800

Warranty

15 Year Limited

Aluminium Bottle Contents

Swinging

ProductType

Manual

Mounting Type

Push or Pull Side

Application

Schools and Universities; Health Care; Government; Commercial and Industrial; Office and Retail; Transportation and Utilities; Hotels and Conference Centers; Religious

Handing

Non-Handed

ADA Compliant

YES

Finish Family

Aluminum

Closer Arm Construction

Forged Steel

Product Material

Cast Iron

Closer Cover

Plastic Cover

Standards

Grade 1 - ANSI/BHMA A156.4; A117.1; UL10C, UBC

Closer Arm Type

Regular Non-Hold Open

Closer Fluid

Standard High Lubricity Extreme Temperature Hydraulic Fluid

Closer Piston Diameter

1-3/8 Inch

Function Family

Non Hold Open Door Closer

Fastener Type

Self Drilling and Machine Screws; Sex Nuts and Bolts (SNBs) (1-3/4 in Minimum Thickness)

Features

Compliance with Building and Barrier-Free Codes; One-Piece Seamless Steel Spring Tube Seals in Hydraulic Fluid; Tapered Valves Allow Precise Adjustment; Quik-Install Mounting Bracket Speeds Installation, Reducing Cost and Errors

Door Thickness

1-3/4 inch

Door Size

2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_corbin_russwin_1

Alternate Part Number-1

151077

Height

3.5

Length

13.75

Width

7.25

Closer Body Length

11.6000

Load Capacity

250 lb

Arm Material

Forged Steel

Includes

Bolts

Damper Type

Door Closer

Operation Type

Manual

Hand Orientation

Non-Handed

Housing Material

Cast Iron

Mount Type

Push Side

Product Service Code

5340

Projection (Decimal Inch)

2.7500

Vendor Drop Ship

N

Maximum Opening (Degrees)

180

Full Cover

Yes

Product Overview
DC3000 SeriesSeries Cast Iron Door Closer

Applications
The mid-priced, cost-effective choice for high-traffic situations. The DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations, including:

  • Schools and universities
  • Health care
  • Government
  • Commercial and industrial
  • Office and retail
  • Transportation and utilities
  • Hotels and conference centers
  • Religious
Advantages:
  • Meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements
  • Compliance with building and barrier-free codes
  • Up to full 180° door opening
  • One-piece seamless steel spring tube seals in hydraulic fluid
  • Tapered valves allow precise adjustment
  • Cast iron body
  • Quik-Install™ mounting bracket speeds installation, reducing cost and errors
  • 15-year limited warranty
  • UL10C, UBC
  • Powder painted arms and retrofit plates
Specifications: Spring Power:
  • Multi-sized; fully adjustable 1 through 6
Handing:
  • Non-handed
Body:
  • Cast iron case with seamless cold-headed steel spring tube
Arm:
  • Standard: forged steel
Spindle:
  • Cold-headed heat-treated steel
Piston:
  • 1-3/8" diameter; Precision machined, heattreated steel
Springs:
  • Chrome silicon wire
Valves:
  • Latching speed, closing speed and backcheck intensity valves standard. Delayed action valve optional (preset for 20 seconds; between 90º and 70º for all mountings.) To order, specify M71.
Seals:
  • "O"rings
Fluid:
  • Standard high lubricity extreme temperature hydraulic fluid
Degree of Opening:
  • Up to full 180° opening standard for regular, top jamb and parallel arm mountings, conditions permitting
Power Adjustment Arm Bracket:
  • 15% adjustment standard
Cover:
  • Non-metallic full cover
Mountings:
  • Standard: regular arm and top jamb. Parallel arm or tri-style packaging - specify DC3210
Mounting Bracket:
  • Quik-Install™ mounting bracket standard
Fasteners:
  • Standard: self-drilling screws
Corrosion Protection:
  • Painted protective coating on all metal surfaces for use in corrosive environments. Specify M75
Warranty:
  • 15-year limited warranty
Certification/Compliance: Barrier-Free Code Compliance:
  • The DC3000 Series Door Closers listed below conform to the 5 lbf. maximum door opening force requirement for non-fire-rated interior hinged doors
Americans with Disabilities Act (ADA):
  • Complies with the Accessibility Guidelines for Buildings and Facilities, Section 4.13.11.
ANSI/BHMA:
  • A156.4, Grade 1.
  • A117.1.
UL / ULC / UL10C:
  • Listed for fire and cycle requirements
