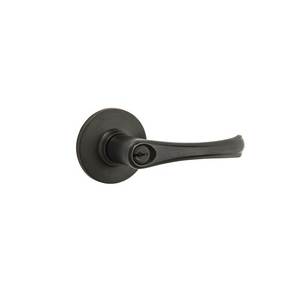

Safelock SL5000GV-11P Grapevine Keyed Entry Lever, Venetian Bronze
Item #: SL5000GV-11P by Safelock
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Entry (Keyed) Function - Locked Or Unlocked By Key Outside Or Turn Button Inside
- No Handing Required
- Box Pack
- 25-Year Mechanical & 5-Year Finish Warranty
- Providing You With Quality, Dependability, And Security With This Safe Lock Product
Shape
Straight
Material
Zinc
Handle Length
3.75
Backset
2-3/8 Inch or 2-3/4 Inch
Handing
Left, Reversible, Right
Keyway
Kwikset KW1
Function
5000-Entry
Door Thickness
1-3/8" to 1-3/4"
UL Listed
No
Product Class
Residential
Product Weight
1.7
Theme
Traditional
Collection
Grapevine
Latch Faceplate
Round Corner
28 Degree Latch
No
ADA
No
ANSI Approved
Yes
ANSI Certification
A156.2
BHMA Certification
Grade 3
Concealed Screws
No
Cross Bore
2-1/8"
Cylinder
5 Pin
Edge Bore
1"
Fire Rated
No
Locking Mechanism
Thumbturn
Manufacturer Warranty
25 Year Mechanical, 5 Year Finish
Panic Proof
No
Rosette Shape
Round
SmartKey
No
Trim Width
2.5625
Handle Projection
2.5
Trim Height
2.5625
Strike
RCS-Round Corner Strike
Cylinder Type
Conventional Cylinder
Finish Description
Venetian Bronze
Lever Style
GV-Grapevine
Keyblank Grouping
SALK-KW1-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Finish
Venetian Bronze
Grade
ANSI/BHMA Grade 3
Keying Charges
Residential-Conventional
Warranty
Mechanical and Finish Lifetime Limited Warranty
Color Code
11P
Bolt Throw
1/2 Inch
ANSI Function
F82
Latch Type
Round Corner Adjustable
Product Height
2-9/16 Inches
Strike Type
Round Corner Strike
ADA Compliant
YES
Finish Family
Dark Bronze
Application
New Multi-Unit Buildings or Single Family Homes
Strike Size
2-1/4 Inch
Standards
ANSI/BHMA A156.2 Grade 3
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore: 2-1/8"; Edge Bore: 1"; Latch Face: 1" x 2-1/4"
Case Dimensions
14.5" L x 11" W x 16.5" H
Function Description
Both knobs locked or unlocked by key outside or turnbutton inside.
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Entry/Entrance/Office
Product Projection
2-1/2 Inch
Door Cross Bore
2.125 Inch
Manufacturer Parent
Spectrum
Lever Length-Inches
3.75 Inch
Door Edge Bore
1 Inch
Sub-Series
SL5000-GV
Safe Lock products are backed by one of the most comprehensive warranty programs available. You can feel confident that with the purchase of Safe Lock you have selected the best quality product, backed by the best customer service available.
Specifications: Door Prep:- Cross Bore 2-1/8"
- Edge Bore 1"
- Latch Face 1" x 2-1/4"
- Adjustable 2-3/8" or 2-3/4"
- UL 2-3/4" standard 2-3/8" option
- 1-3/8" - 1-3/4” doors standard.
- No thick door option
- KW 5 pin
- 1" x 2-1/4"
- Specify round corner, square corner or drive-in
- 2-1/4" full lip
- Specify round corner or square corner
- 1/2" Throw
- A156.2 Grade 3
- 1000 and 7000 functions satisfy section 4.13.9 ADA requirements
- Meets UL 3 hour fire rating for all UL functions. ULRef #R7860
- Both levers always free.
- 1000/1002UL -F75
- Both levers locked or unlocked by turnbutton or push button inside. Outside lever unlocked by emergency key.
- 3000/4000 - F76
- Both sides locked or unlocked by key outside or turnbutton or push button inside.
- 5000/5002UL/6000 - F82
- For doors where only a pull is required. No operation.
- 7000 - Int.
- Note: Description (ANSI/BHMA functions are listed in italics)
- Winston
- Grapevine
- Layton
- Daylon
- Venetian Bronze
- Satin Nickel
- Polished Chrome
- Satin Chrome
- Matte Black
