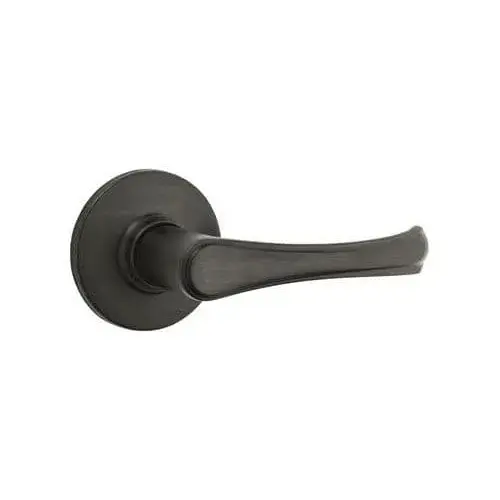

Safelock SL7000GV-11P Grapevine Dummy Lever, Venetian Bronze
Item #: SL7000GV-11P by Safelock
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Half Dummy Function - Dummy Trim For One Side Of Door
- No Handing Required
- Box Pack
- 25-Year Mechanical & 5-Year Finish Warranty
- Providing You With Quality, Dependability, And Security With This Safe Lock Product
Projection
2.5
Shape
Straight
Material
Zinc
Lever Length
3.75
Handing
Left, Reversible, Right
Function
7000-Half Dummy Trim
Door Thickness
1-3/8" to 1-3/4"
UL Listed
No
Rose Diameter
2.5625
Product Class
Residential
Product Weight
0.9
Theme
Traditional
Collection
Grapevine
28 Degree Latch
No
ADA
Yes
ANSI Approved
Yes
ANSI Certification
A156.2
BHMA Certification
Grade 3
Concealed Screws
No
Edge Bore
1"
Fire Rated
No
Manufacturer Warranty
25 Year Mechanical, 5 Year Finish
Rosette Shape
Round
Finish Description
Venetian Bronze
Lever Style
GV-Grapevine
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Finish
Venetian Bronze
Grade
ANSI/BHMA Grade 3
Application
New Multi-Unit Buildings or Single Family Homes
Warranty
Mechanical and Finish Lifetime Limited Warranty
Color Code
11P
Product Height
2-9/16 Inches
ADA Compliant
YES
Finish Family
Dark Bronze
Standards
ANSI/BHMA A156.2 Grade 3; ADA 4.13.9
Case Dimensions
14.5" L x 12" W x 7" H
Function Description
For doors where only a pull is required. No operation
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Dummy
Product Projection
2-1/2 Inch
Manufacturer Parent
Spectrum
Lever Length-Inches
3.75 Inch
Sub-Series
SL7000-GV
Safe Lock products are backed by one of the most comprehensive warranty programs available. You can feel confident that with the purchase of Safe Lock you have selected the best quality product, backed by the best customer service available.
Specifications: Door Prep:- Cross Bore 2-1/8"
- Edge Bore 1"
- Latch Face 1" x 2-1/4"
- Adjustable 2-3/8" or 2-3/4"
- UL 2-3/4" standard 2-3/8" option
- 1-3/8" - 1-3/4” doors standard.
- No thick door option
- KW 5 pin
- 1" x 2-1/4"
- Specify round corner, square corner or drive-in
- 2-1/4" full lip
- Specify round corner or square corner
- 1/2" Throw
- A156.2 Grade 3
- 1000 and 7000 functions satisfy section 4.13.9 ADA requirements
- Meets UL 3 hour fire rating for all UL functions. ULRef #R7860
- Both levers always free.
- 1000/1002UL -F75
- Both levers locked or unlocked by turnbutton or push button inside. Outside lever unlocked by emergency key.
- 3000/4000 - F76
- Both sides locked or unlocked by key outside or turnbutton or push button inside.
- 5000/5002UL/6000 - F82
- For doors where only a pull is required. No operation.
- 7000 - Int.
- Note: Description (ANSI/BHMA functions are listed in italics)
- Winston
- Grapevine
- Layton
- Daylon
- Venetian Bronze
- Satin Nickel
- Polished Chrome
- Satin Chrome
- Matte Black
