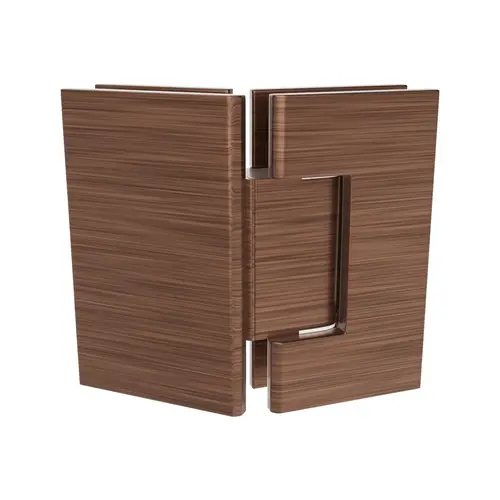

Brixwell H-M135GTG-ACP Glass To Glass Mount Shower Door Hinge 135 Degrees Antique Copper Finish
Item #: H-M135GTG-ACP by Brixwell
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Antique Copper finish complements bathroom hardware, making this shower hinge both functional and decorative.
- Solid forged brass body with precision-machined stainless steel components for the pin assembly and related moving interfaces.
- Self-centering 0 degree return with a reversible 5 degree pin helps establish consistent closing alignment across typical bath configurations.
- Fixed plate 4" Height x 2-1/4" Width, plate spacing 5/32", thicknesses 3/16" and 1/4" support compact geometry at the glass interface.
- Movable side uses 2-1/4" faceplate width and 1-3/4" backplate width, with faceplate 3/16" and backplate 1/4" thicknesses for balance.
- Dual precision-wound stainless steel return springs provide controlled action suitable for interior shower door installations.
- Hardware pack includes matching-finish stainless steel hex clamping screws, crosshead screws, and a hex wrench for setup.
Finish
Antique Copper
Mounting Type
Glass To Glass
Material
Solid Forged Brass
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Edge Profile
Square
Self-Closing
From 25 Degrees
Hardware Included
Matching Finish Stainless Steel Hex Screws
Design
Non-Mouse Ear
Springs
Dual Precision Wound SS Return Springs
Max Door Width 3 Hinges
36" (914mm)
Movable Faceplate Width
2-1/4" (57.15mm)
Movable Faceplate Thickness
3/16" (5mm)
Overall Fixed Plate (H x W)
4" (101.6mm) x 2-1/4" (57.15mm)
Movable Backplate Thickness
1/4" (6mm)
Return Function
Self-Centering 0 degree
Per Hinge Rating
55 lbs
Max Door Weight 3 Hinges
165 lbs
Fixed Backplate Thickness
1/4" (6mm)
Movable Backplate Width
1-3/4" (45mm)
Max Door Width 2 Hinges
36" (914mm)
Spacing Between Fixed And Movable Plate
5/32" (4mm)
Fixed Faceplate Thickness
3/16" (5mm)
Max Door Weight 2 Hinges
110 lbs
Self-Closing Angle
25 Degrees
Product Overview
This 135 degree glass-to-glass shower door hinge is configured for fixed panel to door connections where a clean corner return is required. The hinge uses a self-centering 0 degree return with a reversible 5 degree pin, and closes from 25 degrees. Fixed plate height is 4", with 2-1/4" fixed plate width; fixed faceplate thickness is 3/16", and fixed backplate thickness is 1/4". The movable side gives the geometry with 2-1/4" faceplate width, 3/16" faceplate thickness, 1/4" backplate thickness, and a 1-3/4" movable backplate width. The spacing between fixed and movable plates is 5/32". Precision-machined stainless steel components and dual precision-wound stainless steel return springs support the mechanism. Designed for 3/8" and 1/2" glass. Rated at 55 lbs per hinge. Two hinges support up to 110 lbs and 36" door width, Three hinges support up to 165 lbs and 36" door width. Made from solid forged brass with an Antique Copper finish. Matching-finish stainless steel hex clamping screws, crosshead screws, and a hex wrench are included. Glass fabrication is required.
