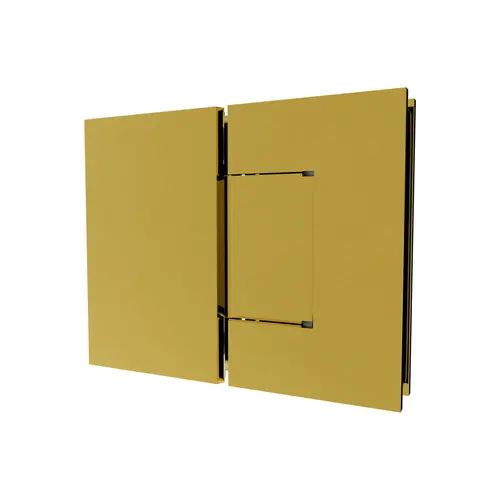

Brixwell H-M180GTG5-PB Glass To Glass Mount Shower Door Hinge 180 Degrees With 5 Degrees Preset Polished Brass Finish
Item #: H-M180GTG5-PB by Brixwell
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Polished Brass finish complements bathroom hardware, making this shower hinge both functional and decorative.
- Solid forged brass body with precision-machined stainless steel components for the pin assembly and related moving interfaces.
- Overall height 4" with faceplate and backplate width 2-1/4" each side to keep a compact footprint at the glass interface.
- Total width 4-11/16" and plate gap 3/16" define the overall geometry and clearance around the hinge mechanism.
- Designed for 3/8" and 1/2" glass panels common to bath enclosures
- Dual precision-wound stainless steel return springs provide controlled action suitable for interior shower door installations.
- Hardware pack includes matching-finish stainless steel hex clamping screws, crosshead screws, and a hex wrench for setup.
Finish
Polished Chrome
Mounting Type
Glass To Glass
Material
Solid Forged Brass
Overall Height
4" (101.6mm)
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Hardware Included
Matching Finish SS Hex Clamping Screws Hex Wrench
Design
Non-Mouse Ear
Springs
Dual Precision Wound SS Return Springs
Gap Between Both Side Plates
3/16" (4mm)
Max Door Width 3 Hinges
36" (914mm)
5 Degrees Preset
Yes
Faceplate Thickness
3/16" (5mm)
Return Function
Self-Centering 0 degree
Faceplate Width (each)
2-1/4" (57.15mm)
Per Hinge Rating
55 lbs
Backplate Thickness
1/4" (6mm)
Max Door Weight 3 Hinges
165 lbs
Total Width (End to End)
4-11/16" (118.7mm)
Max Door Width 2 Hinges
36" (914mm)
Backplate Width (each side)
2-1/4" (57.15mm)
Max Door Weight 2 Hinges
110 lbs
Self-Closing Angle
25 Degrees
Product Overview
This 180 degree glass-to-glass shower door hinge with 5 degree preset is configured for fixed panel to door connections where a clean slightline is preferred. The mechanism provides a self-centering 0 degree return using a reversible 5 degree pin and closes from 25 degree. Overall height is 4", while faceplate and backplate width of each side is 2-1/4". Total width end to end is 4-11/16". Plate gap is 3/16". Backplate thickness is 1/4" and faceplate thickness is 3/16". Precision machined stainless steel components and dual precision wound stainless steel return springs support reliable movement at the corner junction. Designed for 3/8" and 1/2" glass, the hinge is rated 55 lbs per hinge, two hinges support up to 110 lbs with a maximum door width of 36", three hinges support up to 165 lbs with the same maximum door width. The body is solid forged brass with polished brass finish. Matching finish stainless steel hex clamping screws are installed; crosshead screws and a hex wrench are included. Glass fabrication is required before fitting.
