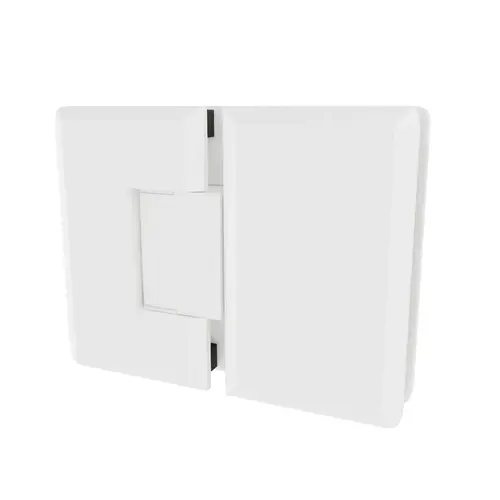

Brixwell H-MB180GTG-WClick To Copy Glass To Glass Mount Hinge 180 Degrees 3/8" and 1/2" Glazing Thickness White Finish

The Glass To Glass Mount Hinge 180 Degrees in white is designed for frameless glass shower doors and bathroom enclosures. This hinge connects two glass panels in a straight 180 degree inline position, making it suitable for shower doors, glass partitions, or frameless bathroom systems where secure glass-to-glass mounting is required. Constructed from solid forged brass, the hinge provides a firm connection, while stainless steel pins and springs support reliable door movement. This hinge is compatible with 3/8" and 1/2" (10 and 12mm) tempered glass panels and requires a glass cutout for proper installation. The beveled edge profile with rounded corners provides a clean look while reducing sharp edges. The hinge measures 4" in height and 4-11/16" in overall width, with both side plates at 2-1/4" width. Built with a non mouse ear design, it allows for smoother adjustments during installation. Each hinge is rated at 55 lbs, with two hinges supporting up to 110 lbs and three hinges supporting up to 165 lbs. This capacity allows use with doors up to 36" wide, making it versatile for residential shower enclosures and frameless bathroom doors. The hinge features a self-closing function that activates from a 25 degree opening, helping doors return to a secure position after use. For functionality, this hinge includes a self-centering feature with 0 degree return and reversible 5 degree pin, which allows adjustment of door return position. These precise specifications support accurate fitting with frameless glass doors. The hinge comes with stainless steel hex clamping screws, crosshead screws, and a wrench, providing all the parts required for mounting in bathroom shower systems. Dual precision wound stainless steel return springs enhance the self-closing action for smooth operation.
