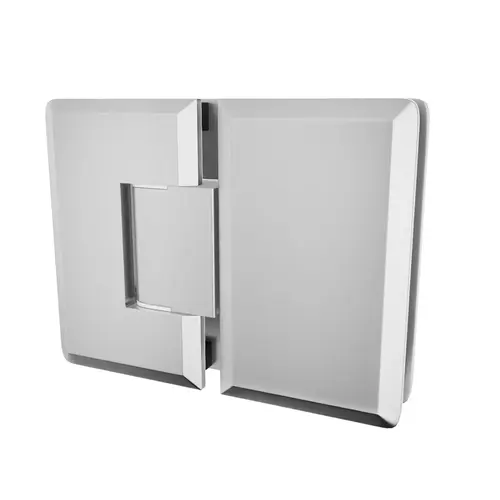

Brixwell H-MB180GTGA-SA Adjustable Glass To Glass Mount Hinge 180 Degrees 3/8" and 1/2" Glazing Thickness Satin Finish
Item #: H-MB180GTGA-SA by Brixwell
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Satin finish and solid forged brass body make this glass hinge durable and decorative for frameless enclosures.
- Designed for 3/8" and 1/2" glazing, this door hinge is compatible with standard glass shower panels and doors.
- Provides 180 degree glass-to-glass mounting, making this shower hinge perfect for inline frameless installations.
- Each hinge supports 55 lbs; 2 hinges 110 lbs, 3 hinges 165 lbs, making this pivot hinge reliable for heavy doors.
- Measures 4" height 4-11/16" overall width with 2-1/4" wide plates, giving this shower hinge strength and balance.
- Non mouse ear design with beveled edges and rounded corners gives this bathroom hinge a neat and modern finish.
- Supplied with stainless steel screws, crosshead screw, and wrench, this shower hardware is installation-ready.
Height
4" (101.6mm)
Finish
Satin
Mounting Type
Glass To Glass
Material
Solid Forged Brass
Overall Width
4-11/16" (118.7mm)
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Max Door Width
36" (914mm)
Edge Profile
Beveled with Rounded Corners
Self-Closing
From 25 Degrees
Adjustable
Yes
Design Style
Non Mouse Ear Design
Plate Thickness
3/16" (5mm) and 1/4" (6mm)
Glass To Glass Angle
180 Degrees
Hardware Include
Matching Finish SS Hex Clamping Screws and Wrench
Cross Head Screw Included
Yes
5 Degrees Preset
No
Plate Width (Both Side)
2-1/4" (57.15mm)
Self Centering Function
0 Degree Return Adjustment Upto 30Degree In or Out
Per Hinge Rating
55 lbs Per Hinge
Pins and Springs Material
Stainless Steel
Max Door Weight 3 Hinges
165 lbs
Max Door Weight 2 Hinges
110 lbs
Product Overview
The Adjustable Glass to Glass Mount Hinge 180 Degrees is designed for frameless shower enclosures and bathroom glass doors that require a secure and functional connection. Made from solid forged brass with a satin finish, this hinge pairs well with bathroom hardware, supporting both residential and light commercial glass installations. This hinge is built with a beveled edge profile and rounded corners, giving a smooth appearance that blends into frameless glass setups. It is suitable for 3/8" and 1/2" (10 and 12mm) tempered glass and requires glass cutouts for accurate mounting. The hinge uses stainless steel pins and springs, providing self-closing functionality from 25 degrees, helping doors return to position after use. The hinge features an adjustable design that allows for 0-degree return adjustment up to 30 degrees in or out, giving flexibility during installation and after setup. Each hinge is rated at 55 lbs, with two hinges supporting up to 110 lbs and three hinges supporting up to 165 lbs, making it suitable for shower doors up to 36" wide. The hinge measures 4" height with an overall width of 4-11/16", each plate 2-1/4" wide, with beveled edges and rounded corners for a polished look. Plate thickness ranges between 3/16" and 1/4", ensuring stability for heavy doors. Installation is supported with included stainless steel hex clamping screws, crosshead screw, and a 3mm hex wrench, ensuring you have all required parts for mounting. The non-mouse ear design provides added adjustment capability while maintaining clean aesthetics for bathroom spaces.
