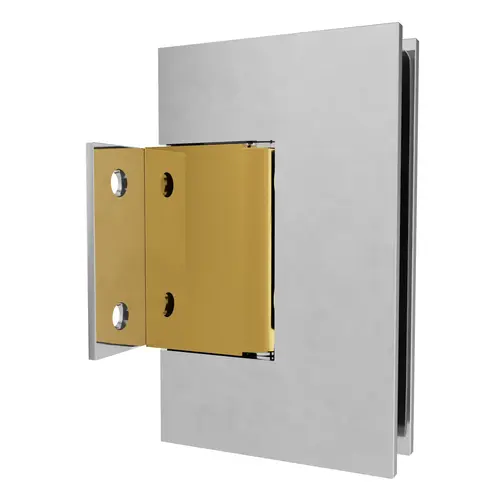

Brixwell H-MGTWA-CB Adjustable Glass To Wall Mount Shower Door Hinge With Short Mounting Plate Polished Chrome With Brass Accents Finish
Item #: H-MGTWA-CB by Brixwell
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Polished Chrome With Brass Accents finish complements bathroom hardware, making this shower hinge both functional and decorative.
- Solid forged brass body with precision-machined stainless steel components for the pin assembly and related moving interfaces.
- Hinge size 4" Height x 2-1/4" Width; faceplate and backplate thickness standardized at 3/16".
- Short mounting plate 2-3/4" Height x 2-1/4" Width x 3/16" Thickness supports an organized, compact hardware footprint
- Screw hole diameter is 1/2" and a 3/16" gap is maintained between hinge and mounting plates.
- Vertical screw hole distance on Hinge is 3", mounting hole spacing 2", screw-to-edge distance is 1-15/16".
- Designed for 3/8" and 1/2" glass panels common to bath enclosures
Finish
Polished Chrome
Mounting Type
Glass To Wall
Material
Solid Forged Brass
Mounting Plate Width
2-1/4" (57.15mm)
Mounting Plate Height
2-3/4" (69.9mm)
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" and 1/2" (10 and 12 mm) Glass
Mounting Plate Thickness
3/16" (5mm)
Adjustment Range
30 Degrees In or Out
Design
Non-Mouse Ear
Springs
Dual Precision Wound SS Return Springs
Overall Hinge Width
2-1/4" (57.15mm)
Faceplate Thickness
3/16" (5mm)
Mounting Screw Hole Distance
2" (50.8mm)
Backplate Thickness
3/16" (5mm)
Max Door Weight 3 Hinges
120 lbs
Overall Hinge Height
4" (101.6mm)
Vertical Screw Hole Distance On Hinge
3" (76mm)
Max Door Weight 2 Hinges
80 lbs
Self-Closing Angle
25 Degrees
Product Overview
This adjustable glass-to-wall shower door hinge with square corners is configured for compact door-to-wall junctions where an organized hardware footprint is preferred. The hinge provides post-install closing position adjustment, using a self-centering 0 degree return adjustable up to 30 degree in or out, and closes from 25 degree. The hinge body is solid forged brass with Polished Chrome with Brass Accents finish paired with precision machined stainless steel components and dual precision wound return springs. Overall hinge height is 4", with an overall width of 2-1/4". Faceplate and backplate thickness is 3/16". The short mounting plate measures 2-3/4" x 2-1/4" with a 3/16" plate thickness. The vertical screw hole distance on the hinge is 3", the mounting screw hole distance is 2", and the screw-to-edge distance is 1-15/16". Screw hole diameter is 1/2". A 3/16" gap is maintained between the hinge and mounting plates. Matching-finish stainless steel hex style clamping screws are installed; crosshead screws and a hex wrench are included. Rated at 40 lbs per hinge. Two hinges support up to 80 lbs and 30" width; three hinges support up to 120 lbs and 36" width. Glass fabrication is required.
