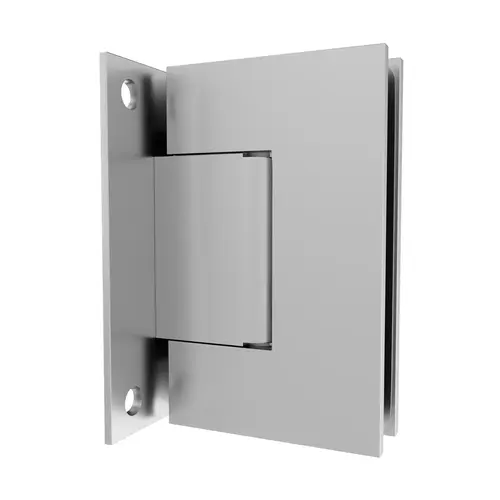

Brixwell H-MGTWA-FP-SA Adjustable Glass To Wall Mount Shower Door Hinge With Full Mounting Plate Satin Finish
Item #: H-MGTWA-FP-SA by Brixwell
11 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Satin finish complements bathroom hardware, making this shower hinge both functional and decorative.
- Solid forged brass body with precision-machined stainless steel components for the pin assembly and related moving interfaces.
- Overall hinge height 4" and overall hinge width 2-1/4" define a compact footprint at the glass-to-wall connection point.
- Self-centering 0 degree return with post-install adjustment up to 30 degree in or out for alignment after installation.
- Full mounting plate 4" Height x 2-1/4" Width with 3/16" thickness provides uniform coverage and organized fastener layout.
- Mounting screw hole distance 3-1/4" and vertical hole spacing 3" on hinge support planned anchor placement on the prepared substrate.
- Gap between hinge and mounting plates 3/16" maintains clearance for controlled movement around the hinge axis.
Finish
Satin
Mounting Type
Glass To Wall
Material
Solid Forged Brass
Mounting Plate Width
2-1/4" (57.15mm)
Mounting Plate Height
4" (101.6mm)
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Hardware Included
Matching Finish SS Hex Clamping Screws Hex Wrench
Mounting Plate Thickness
3/16" (5.1mm)
Design
Non Mouse Ear Design
Springs
Dual Precision Wound SS Return Springs
Max Door Width 3 Hinges
36" (914mm)
Faceplate and Backplate Thickness
3/16" (5mm)
Overall Hinge Width
2-1/4" (57.15mm)
Mounting Screw Hole Distance
3-1/4" (82.55mm)
Return Function
Self-Centering 0 degree
Per Hinge Rating
55 lbs
Max Door Weight 3 Hinges
165 lbs
Overall Hinge Height
4" (101.6mm)
Vertical Screw Hole Distance On Hinge
3" (76.2mm)
Gap Between Hinge And Mounting Plates
5/32" (4mm)
Max Door Width 2 Hinges
36" (914mm)
Adjustment Angle
30 Degrees Maximum
Max Door Weight 2 Hinges
110 lbs
Self-Closing Angle
25 Degrees
Product Overview
This adjustable glass-to-wall shower door hinge with a Full Mounting Plate is configured for door-to-wall connections where a clean, square junction is preferred. The assembly uses a self-centering 0 degree return with post-install adjustment up to 30 degrees in or out and a self-closing action from 25 degrees, supported by dual precision wound stainless steel return springs. Overall hinge height is 4", and overall hinge width is 2-1/4". Faceplate and backplate thickness is 3/16". The full mounting plate measures 4" in height by 2-1/4" in width with a 3/16" plate thickness. Mounting screw hole distance along the plate is 3-1/4", with a vertical screw hole distance of 3". The screw-to-edge width is 1-3/4". The gap between the hinge and mounting plates is 3/16". Precision machined stainless steel components support the pin and related interfaces. The body is solid forged brass in Satin finish, and matching finish stainless steel hex clamping screws are supplied, crosshead screws and a hex wrench are included. Designed for 3/8" and 1/2" glass. Glass fabrication is required before fitting and final seating.
