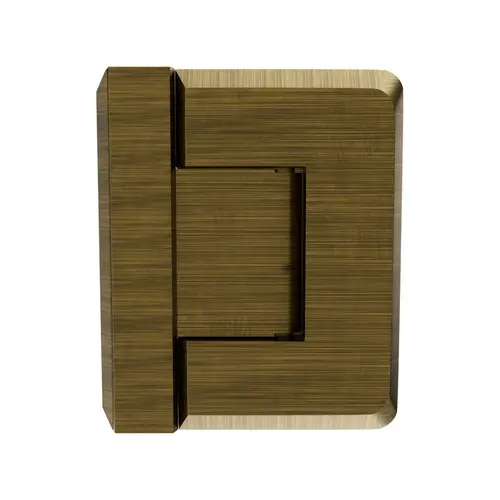

Brixwell H-P90GTG-ABClick To Copy Glass To Glass Mount Shower Door Hinge 90 Degrees 3/8" and 1/2" Glass Thickness Antique Brass Finish

The Glass-to-Glass Mount Shower Door Hinge 90 Degrees in Antique Brass finish is designed for frameless shower door installations requiring a precise right-angle connection between two glass panels. Constructed from solid forged brass with precision-machined stainless steel internal components, this hinge provides strength and extended performance in both residential and commercial shower systems. It features dual precision wound stainless steel return springs that allow self-centering action at 0 degree return, while also enabling self-closing operation from a 25 degree door angle. The hinge is preset at 5 degree to ensure reliable closure, with optional pins available for 45 degree or reversible 5 degree configurations. Designed for 3/8" (10mm) and 1/2" (12mm) tempered glass, the hinge is rated at 40 lbs per hinge. Two hinges support up to 80 lbs with a maximum door width of 30", while three hinges support up to 120 lbs with a maximum door width of 36". Dimensional details include hinge height of 3-9/16", plate width of 2-3/16", and a bottom horizontal measurement of 3-1/8". For weight reference, 3/8" glass is 5.05 lbs/sf and 1/2" glass is 6.40 lbs/sf. The beveled edge profile gives a smooth transition at the hinge connection, enhancing the fit of frameless shower designs. Hardware is included with the hinge, consisting of matching finish stainless steel hex clamp screws and a hex wrench, making installation straightforward. This hinge is non-adjustable and requires glass fabrication cutouts for mounting. Its antique brass finish coordinates with door hardware, shower hardware, glass hardware, and other fittings in bathroom projects. Wall mount hinges come with matching stainless screws and extra crosshead screws.
