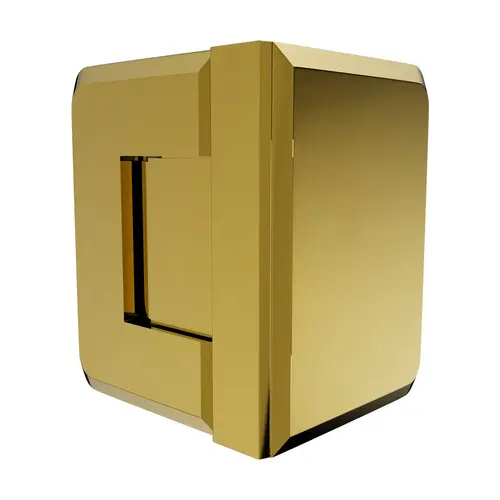

Brixwell H-P90GTG5-PBClick To Copy Glass To Glass Hinge 90 Degrees 3/8" and 1/2" Glass Thickness With 5 Degrees Pin Polished Brass Finish

The Glass-to-Glass Hinge With 5 Degrees Pin in Polished Brass finish is designed for frameless shower door installations requiring a 90-degree glass-to-glass connection with positive closure. Constructed from solid forged brass with precision machined stainless steel internal components, this hinge provides reliable performance and integration with glass hardware, shower hardware, and door hardware systems. It features dual precision wound stainless steel return springs that allow self-centering action, returning the door to 0 degree and providing self-closing capability from a 25 degree door angle. The preset 5 degree pin ensures positive closure, supporting secure door alignment. This hinge is compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass, with weight guidance of 5.05 lbs/sf for 3/8" glass and 6.40 lbs/sf for 1/2" glass. Each hinge is rated at 40 lbs, with two hinges supporting up to 80 lbs and a maximum door width of 30", while three hinges support up to 120 lbs with a maximum door width of 36". The hinge measures 3-9/16" in height, 2-3/16" plate width, and 3-1/8" bottom horizontal, with a beveled edge profile for a smooth transition between glass panels. A mouse ear design provides accurate alignment during installation. This hinge is non-adjustable and requires glass cutout fabrication. Hardware includes matching finish stainless steel mounting screws and a hex wrench, designed to blend seamlessly with the polished brass hinge finish.
