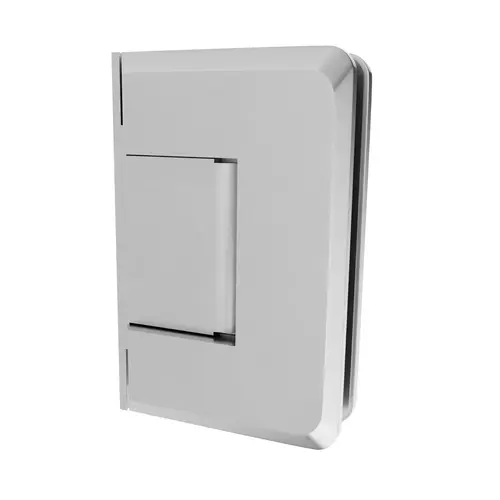

Brixwell H-PGTW-OP-SAClick To Copy Glass To Wall Mount Shower Door Hinge 3/8" and 1/2" Glass Thickness With Offset Back Plate Type Satin Finish

The Glass to Wall Mount Shower Door Hinge in Satin is designed for frameless shower enclosures requiring a firm wall connection with a refined appearance. Constructed from solid forged brass with precision-machined stainless steel internal components, this hinge is built for strength and stability in glass hardware, shower hardware, and door hardware applications. It features dual precision wound stainless steel return springs that provide self-centering action at 0 degree return, along with self-closing capability from a 25 degree door angle. The hinge includes a reversible 5 degree pin for flexible closing options, with additional preset pins available at 5 degree and 45 degree. It featues with offset back plate design allows a compact yet secure wall attachment, complemented by crosshead screws and finished-to-match stainless steel hex clamp screws for a seamless look. Compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass, each hinge is rated at 40 lbs, with two hinges supporting up to 80 lbs and a maximum door width of 30", while three hinges support up to 120 lbs and a maximum width of 36". Dimensional details include overall hinge height of 3-9/16", width of 2-3/16", back plate width of 1-15/16", and thickness of 5/32". Glass gap is 3/16" per side, with a center gap of 1/8".Back Plate Hole Center Distance 2-3/4" and Back plate measures 3-9/16" in height.For glass weight guidance, 3/8" glass is 5.05 lbs/sf and 1/2" glass is 6.40 lbs/sf. The hinge requires glass fabrication cutouts for installation. Hardware includes matching finish stainless steel mounting screws and a hex wrench. Solid forged brass shower door hinges with rounded, beveled edges
