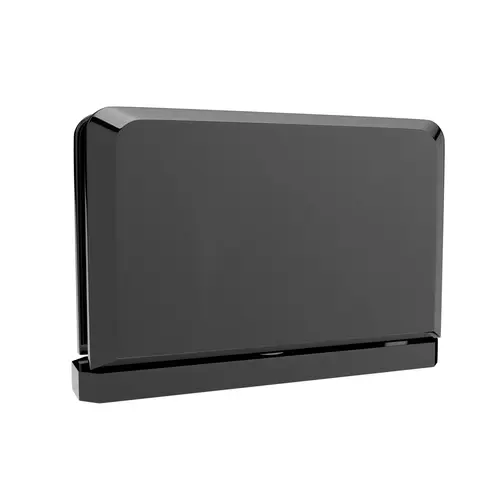

Brixwell H-PIVBGTC-GMClick To Copy Glass To Curb Mount Beveled Pivot Hinge 3/8" and 1/2" Glass Thickness Bottom Type Black Nickel Finish

The Glass to Curb Mount Beveled Pivot Hinge in Black Nickel finish is designed for frameless shower enclosures requiring top or bottom mounting. Constructed from solid forged brass with precision machined stainless steel internal components, this hinge provides strength and reliability in demanding shower hardware and glass hardware applications. It features precision wound stainless steel return springs that deliver self-centering 0 degree return and self-closing from a 25 degree door angle, with an optional 5 degree positive closure pin available for specific setups. The non-mouse ear design allows additional adjustment while providing clearance for towel bars and other projections in the shower enclosure. This hinge is compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass and requires glass fabrication cutouts for installation. Each hinge is rated at 40 lbs capacity, with two hinges supporting doors up to 120 lbs and a maximum width of 36". Dimensional details include an overall width of 4", height of 2-11/16", plate height (cutout step) of 2-1/4", plate thickness of 3/16" per side, base thickness of 11/32", chamfer thickness of 5/64", back plate width of 7/8", and back plate end to end hole spacing of 3-1/8". The beveled edge profile enhances the fit and appearance in frameless installations. Hardware includes matching finish stainless steel hex clamp screws, crosshead screws, and a hex wrench for installation. Designed for use with Euro-Header and Elite-Header systems, this hinge integrates seamlessly into pivot hinge, frameless hinge, and mount hinge applications. With its self-centering action, reliable weight capacity, and high-precision build, it provides consistent performance in both residential and light commercial shower door projects.
