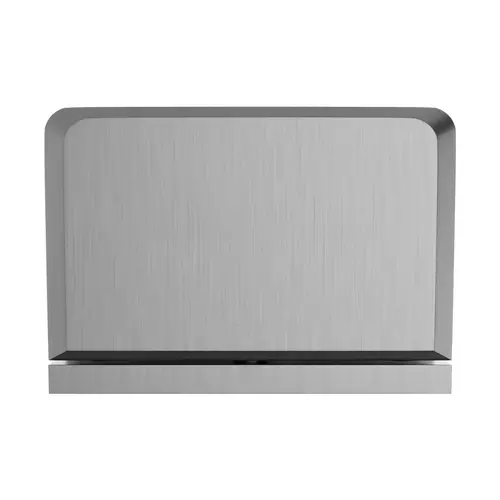

Brixwell H-PIVBGTC5-SC Glass To Curb Mount Beveled Pivot Hinge Bottom And With 5 Degrees Pin 3/8" And 1/2" (10 and 12mm) Glazing Thickness Satin Brushed Chrome Finish

Item #: H-PIVBGTC5-SC by Brixwell

See reviewsSee reviews
See reviews summary
In Stock

$30.13

70.22 /each
SAVE UP TO 3.01
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Solid forged brass construction with satin brushed chrome finish.
  • Designed for 3/8" and 1/2" (10 to 12mm) glass shower enclosures.
  • Self closing from 25 degree with 5 degree positive closure and self centering.
  • Supports door weight up to 120 lbs and maximum width of 36".
  • Rated for two hinges with weight capacity of glass thickness.
  • Includes SS hex clamping screws, wrench, and crosshead screw.
  • Bottom mount with beveled design provides smooth operation.

Finish

Satin Brushed Chrome

Material

Solid Forged Brass

Base Thickness

5/64"

Overall Width

4"

Type

Bottom With 5 Degrees Pin

Max Door Weight

120 lbs

Max Door Width

36"

Plate Height

2-11/16"

Rated Capacity

2 Hinges

Hardware Includes

SS Hex Clamping Screws and Wrench, CrossHead Screw

Mounting Height

2-1/4"

Weight of 3/8" Glass

5.05 lbs/sf

Self-Closing From

25 Degrees

Weight of 1/2" Glass

6.40 lbs/sf

Self Centering

5 Degrees Positive Closure

Designed For Glazing Thickness

3/8" And 1/2" (10 And 12mm)

Product Overview
This Glass to Curb Mount Beveled Pivot Hinge is crafted from solid forged brass with a satin brushed chrome finish. Designed for 3/8" and 1/2" (10 to 12mm) glass, it features a 5 degree positive closure with self centering action from 25 degree. Rated for doors up to 120 lbs and 36" width when using two hinges, it provides reliable performance in shower enclosures. Hardware includes stainless steel hex clamping screws, wrench, and crosshead screw for secure installation. Suitable for bottom mounting, the hinge supports smooth operation with a refined finish.
