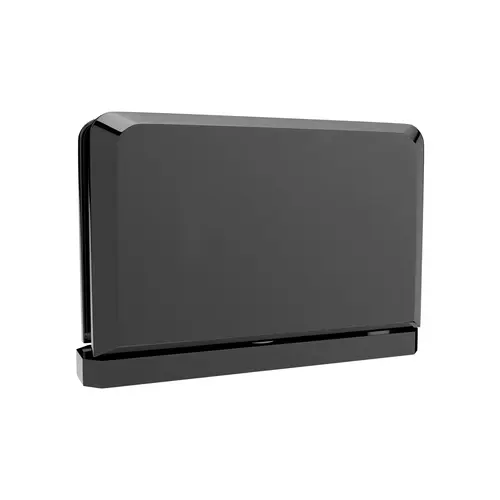

Brixwell H-PIVBGTCA-GM Adjustable Pivot Top Or Bottom Mount Hinge Glass To Curb Mount 3/8" and 1/2" Glass Thickness Black Nickel Finish
Item #: H-PIVBGTCA-GM by Brixwell
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Black Nickel finish pivot hinge made of solid forged brass, designed for top or bottom mounting to curb or header.
- Adjustable feature allows door closing position to be fine-tuned after installation up to 90 degree in or out.
- Designed for 3/8" (10mm) and 1/2" (12mm) glazing thickness frameless shower doors requiring cutout.
- Dimensions are width 4", height 2-11/16", plate height 2-1/4", plate thickness 3/16", base thickness 11/32".
- Precision machined stainless steel components and return springs provide smooth hinge operation.
- Non-mouse ear design provides additional clearance and easier adjustment within frameless installations.
- Includes matching finish stainless steel hex clamp screws, crosshead screws, and hex wrench.
Finish
Black Nickel
Material
Solid Forged Brass
Base Thickness
11/32" (9mm)
Overall Width
4" (102mm)
Type
Top or Bottom Mount
Overall Height
2-11/16" (68mm)
Mounting Style
Glass to Curb mount
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" (10mm) and 1/2" (12mm)
Self-Closing
From 25 Degrees
Hardware Includes
SS Hex Clamping Screws and Wrench, CrossHead Screw
Used For
Euro Header Or Elite Header Systems
Back Plate Width
7/8" (22mm)
Adjustable
Yes
Design Style
Non Mouse Ear
Chamfer Thickness
5/64" (2mm)
5 Degrees Preset
No
Back Plate Hole Spacing (Horizontal)
3-1/8" (80mm)
Plate Height (Cutout Step)
2-1/4" (57mm)
Weight of 3/8" Glass
5.05 lbs/sf
Weight of 1/2" Glass
6.40 lbss/sf
Self Centering
Yes
Max Door Weight With 2 Hinges
120 lbs
Max Door Width With 2 Hinges
36" (914mm)
Plate Thickness (Each Side)
3/16" (5mm)
Product Overview
The Adjustable Pivot Hinge Glass to Curb Mount in Black Nickel finish is designed for frameless shower enclosures requiring top or bottom mounting with precise alignment options. Made from solid forged brass with precision-machined stainless steel internal components, this hinge combines strength and functionality for door hardware, shower hardware, and glass hardware applications. It features dual precision wound stainless steel return springs that allow self-centering 0 degree return and self-closing from a 25 degree door angle. The hinge includes an adjustable mechanism, allowing the door closing position to be fine-tuned after installation by loosening two screws with the included 3mm hex wrench, adjusting the door up to 90 degree in or out, and retightening. This feature offers flexibility for installers to align shower doors with existing walls or panels. The hinge is compatible with Euro-Header and Elite-Header systems, designed for 3/8" (10mm) and 1/2" (12mm) tempered glass. Rated at 40 lbs per hinge, two hinges support doors up to 120 lbs with a maximum width of 36". Dimensions include overall width of 4", overall height of 2-11/16", plate height (cutout step) of 2-1/4", plate thickness of 3/16" per side, base thickness of 11/32", chamfer thickness of 5/64", back plate width of 7/8", and end to end hole spacing of 3-1/8". The non-mouse ear design improves clearance and adjustment flexibility, especially for frameless hinge and pivot hinge installations. The black nickel finish provides a refined appearance while coordinating with other shower hardware and glass mount fittings. Hardware includes matching finish stainless steel hex clamp screws, crosshead screws, and a hex wrench for installation. This hinge is suitable for Euro-Header and Elite-Header systems in both residential and light commercial projects, offering reliability and adjustability for frameless shower enclosures.
