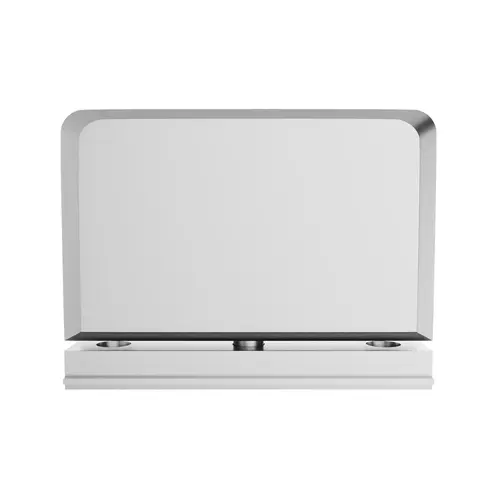

Brixwell H-PIVBGTE-SA Glass To Header Mount Shower Door Pivot Hinge Elite Header 3/8" and 1/2" Glass Thickness Satin Finish
Item #: H-PIVBGTE-SA by Brixwell
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Satin finish pivot hinge designed for Elite Header system frameless shower door installations.
- Made of solid forged brass with beveled edge profile and non-mouse ear design for hinge adjustment.
- Designed for 3/8" (10mm) and 1/2" (12mm) glazing thickness shower door panels requiring cutout.
- Closing type is self-centering 0 degree return, with optional 5 degree positive closure available if required.
- Dimensions include end to end hole spacing 3-1/4", glass edge to hole 1-13/16", cutout radius 3/8".
- Precision machined stainless steel components and return springs support reliable hinge operation.
- Hardware supplied includes matching finish stainless steel mounting screws and hex wrench.
Finish
Satin
Material
Solid Forged Brass
Type
Header Mount Hinge
Mounting Style
Glass To Header
Glass Fabrication Required
Cutout
Closing Type
Self Centering 0 Degrees Return
Glazing Thickness
3/8" (10mm) and 1/2" (12mm)
Edge Profile
Beveled
Self-Closing
From 25 Degrees
Hardware Includes
SS Hex Clamping Screws and Wrench, CrossHead Screw
Adjustable
No
Compatible With
Elite Header System
Design Style
Non Mouse Ear
End To End Hole Spacing
3-1/4" (83mm)
Glass Edge To The Hole
1-13/16" (46mm)
5 Degrees Preset
No
Weight of 3/8" Glass
5.05 lbs/sf
Weight of 1/2" Glass
6.40 lbss/sf
Self Centering
Yes
Max Door Weight With 2 Hinges
120 lbs
Cutout Radius (Each Corner)
3/8" (10mm)
Max Door Width With 2 Hinges
36" (914mm)
Product Overview
The Glass to Header Mount Shower Door Pivot Hinge in Satin finish is designed for frameless shower enclosures where door panels connect to Elite Header systems. Made from solid forged brass with precision-machined stainless steel internal components, this hinge provides strength and long-term performance for shower hardware, door hardware, and glass hardware applications. It features dual precision wound stainless steel return springs that deliver self-centering 0 degree return and self-closing from a 25 degree door angle. A 5 degree positive closure option is available when required. The non-mouse ear design allows improved adjustment during installation and integration with Elite Header system frames. Compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass, each hinge is rated at 40 lbs capacity. With two hinges, the system supports a maximum door weight of 120 lbs and a maximum door width of 36". For weight reference, 3/8" glass is 5.05 lbs/sf and 1/2" glass is 6.40 lbs/sf. Dimensional details include glass edge to hole spacing of 1-13/16", end to end hole spacing of 3-1/4", and a 3/8" cutout radius at each corner. The beveled edge profile ensures a smooth transition within the frameless hinge system. This hinge is non-adjustable and requires glass fabrication cutouts for installation. Hardware includes matching finish stainless steel mounting screws and a hex wrench.
