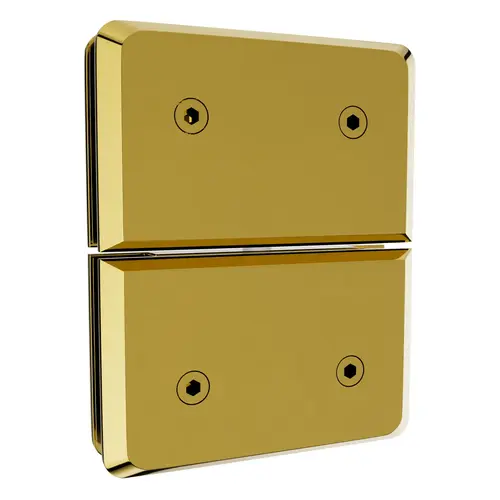

Brixwell H-PIVBGTGA-PBClick To Copy Adjustable Glass To Glass Pivot Hinge For Overhead Fixed Transom 3/8" and 1/2" Glass Thickness Polished Brass Finish

The Adjustable Glass-to-Glass Pivot Hinge for Overhead Fixed Transom in Polished Brass finish is designed for frameless shower enclosures requiring a pivot connection between door glass and a fixed transom panel. Built from solid forged brass with precision machined stainless steel internal components, this hinge is engineered for strength and smooth operation in shower hardware, door hardware, and glass hardware applications. It features an adjustable mechanism that allows the door closing position to be aligned after installation, with adjustment up to 90 degree in or out. Using the included hex wrench, installers can loosen the screws, reposition the door, and re-tighten for accurate fit. The hinge supports self-centering 0 degree return and self-closing from a 25 degree door angle, powered by dual precision wound stainless steel return springs. Designed for use with Euro Header and Elite Header systems, it is compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass, requiring fabrication cutouts for installation. Each hinge is rated at 40 lbs capacity, with two hinges supporting doors up to 120 lbs and a maximum width of 36". Dimensional details include glass edge to hole spacing of 1-13/16" (top and bottom), end to end hole spacing of 3-1/4", clearance of 3/16", and cutout hole diameter of 1/2". The beveled edge profile ensures a refined fit in frameless hinge and pivot hinge configurations. For weight guidance, 3/8" glass is 5.05 lbs/sf, while 1/2" glass is 6.40 lbs/sf. Hardware includes matching finish stainless steel hex clamp screws, crosshead screws, and a hex wrench.
