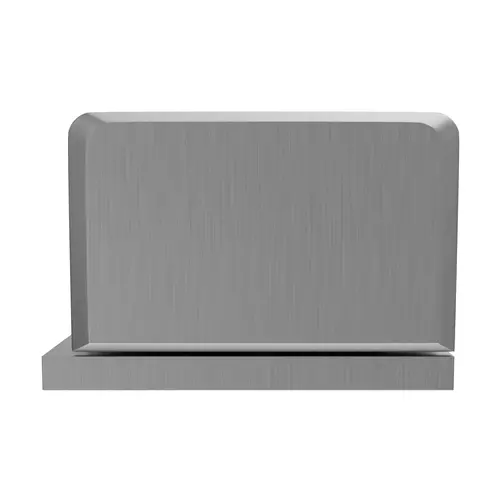

Brixwell H-PIVBGTW-SCClick To Copy Glass To Wall Shower Door Pivot Hinge 3/8" and 1/2" Glass Thickness With Reversible L Bracket Type Satin Chrome Finish

The Glass to Wall Shower Door Pivot Hinge With Reversible L Bracket in Satin Chrome finish is designed for frameless shower installations that require reliable top and bottom mounting for a seamless appearance. Constructed from solid forged brass with precision-machined stainless steel components, this hinge combines strength and consistent performance for shower hardware, glass hardware, and door hardware applications. Dual precision wound stainless steel return springs provide self-centering 0 degree return and self-closing from a 25 degree door angle, ensuring smooth and secure door operation. The reversible L bracket design adds installation flexibility and enhances alignment, while the non-mouse ear design provides easier adjustment during setup. This hinge is suitable for 3/8" (10mm) and 1/2" (12mm) tempered glass and requires fabrication cutouts for installation. Each hinge is rated at 40 lbs, with two hinges supporting doors up to 120 lbs and a maximum door width of 36". For weight guidance, 3/8" glass is 5.05 lbs/sf and 1/2" glass is 6.40 lbs/sf. Dimensional details include overall width of 4", front plate height of 2-1/4", top plate screw hole spacing of 1", top plate thickness of 7/16", offset plate thickness of 5/16", back plate thickness of 3/16" each side, and side plate lip thickness of 1/16". The beveled edge profile provides a smooth fit in frameless hinge systems while supporting Euro-Header or Elite-Header Systems installations. Hardware includes matching finish stainless steel hex clamp screws, crosshead screws, and a hex wrench.
