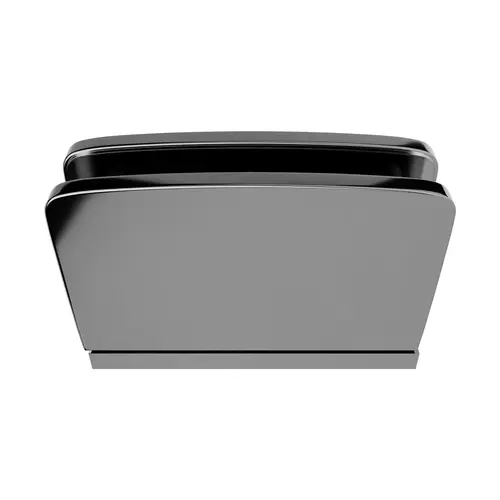

Brixwell H-PIVCGTCA-CClick To Copy Adjustable Top Or Bottom Mount Pivot Hinge 5/16" and 3/8" Glass Compatibility Polished Chrome Finish

The Adjustable Top or Bottom Mount Pivot Hinge in Polished Chrome finish is designed for frameless shower doors requiring secure mounting with Elite Header systems. Built from solid forged brass with precision-machined stainless steel internal components, this hinge ensures strength and dependable operation for shower hardware, glass hardware, and door hardware installations. It features dual precision wound stainless steel return springs that provide self-centering 0 degree return and self-closing from a 25 degree door angle. An adjustable mechanism allows the door closing position to be fine-tuned up to 90 degree in or out after installation. By loosening screws with a hex wrench, adjusting the door, and re-tightening, installers can achieve accurate alignment to meet project requirements. The non-mouse ear design further simplifies adjustment while maintaining a frameless appearance. Designed for 5/16" (8mm) and 3/8" (10mm) tempered glass, the hinge requires fabrication cutouts for proper installation. Each hinge is rated at 40 lbs, with two hinges supporting doors up to 100 lbs and a maximum width of 31". Glass weight guidance is 4.09 lbs/sf for 5/16" panels and 5.05 lbs/sf for 3/8" panels. Dimensional details include glass edge to hole spacing of 1-3/4" and end to end hole spacing of 3". The hinge face has a cambered profile with rounded corners, giving a refined finish that complements frameless hinge and pivot hinge setups. Hardware includes matching stainless steel hex clamping screws, crosshead screws, and a hex wrench for installation.
