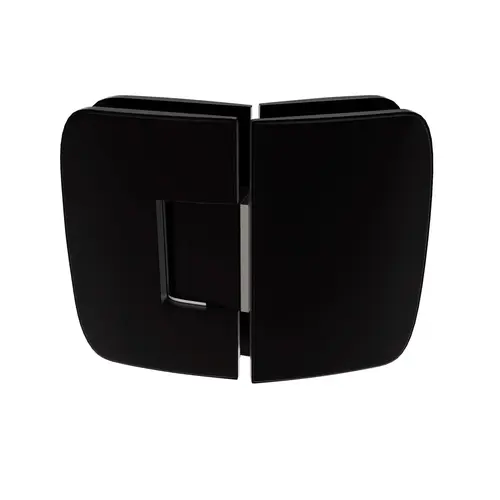

Brixwell H-V135GTGA-OB Adjustable Glass To Glass Mount Shower Door Hinge 135 Degrees 3/8" and 1/2" Glazing Thickness Oil Rubbed Bronze Finish
Item #: H-V135GTGA-OB by Brixwell
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Made of solid forged brass with Oil Rubbed Bronze finish, this shower hinge offers lasting use for bathroom and shower enclosures.
- Stainless steel pins and springs support the door hinge, giving smooth movement and reliable hinge part function.
- Compatible with 3/8" and 1/2" glazing, this glass hinge works with standard shower doors for stable mounting.
- Supports up to 80 lbs with 2 hinges or 120 lbs with 3, making this adjustable hinge practical for glass door setups.
- Allows door widths up to 30" with 2 hinges or 36" with 3, making this glass mount hinge suitable for varied layouts.
- Mouse ear cutout design with rounded corners supports easy installation and aligns the hinge part securely.
- Includes stainless steel clamping screws and hex wrench, making this shower fitting installation-ready.
Finish
Oil Rubbed Bronze
Mounting Type
Glass To Glass
Material
Solid Forged Brass
Hole Size
3/4" (19mm)
Glass Fabrication Required
Cutout
Corner Style
Rounded Corners
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Edge Profile
Cambered
Self-Closing
From 25 Degrees
Adjustable
Yes
Included Hardware
Matching Finish SS Hex Clamping Screws and Wrench
Glass Edge To The Hole
2-1/8" (54mm)
Max Door Width 3 Hinges
36" (914mm)
5 Degrees Preset
No
Self Centering Function
0 Degree Return Adjustment Upto 30Degree In or Out
Fixed Panel Hole Spacing
2-3/8" (60mm)
Miter Cut
45 Degrees on Fixed Panel Only
Per Hinge Rating
40 lbs Per Hinge
Angle Degrees
135 Degrees
Pins and Springs Material
Stainless Steel
Max Door Weight 3 Hinges
120 lbs
Max Door Width 2 Hinges
30" (762mm)
Max Door Weight 2 Hinges
80 lbs
Product Overview
The Adjustable Glass To Glass Mount Shower Door Hinge is designed to connect shower doors to fixed glass panels at a 135 degree angle. Made from solid forged brass with an Oil Rubbed Bronze finish, this hinge is built to blend with modern bathroom hardware while providing reliable support for frameless glass shower enclosures. It fits 3/8" and 1/2" (10 and 12mm) thick glass panels, making it suitable for different types of shower doors. The hinge is built with stainless steel pins and springs that support smooth operation and long-lasting function. It has a self-centering feature that returns the door to the closed position at 0 degrees and includes an adjustment up to 30 degrees in or out, helping installers align doors correctly. Each hinge supports up to 40 lbs per hinge, with two hinges carrying a maximum of 80 lbs and three hinges carrying up to 120 lbs. It works with a maximum door width of 30" with 2 hinges or 36" with 3 hinges, providing flexibility for different shower layouts. The hinge design includes rounded corners and a cambered edge profile for a clean appearance. It requires a glass cutout for installation, with a fixed panel hole spacing of 2-3/8" and a hole size of 3/4". The distance from the glass edge to the hole is 2-1/8", ensuring proper placement. The hinge also supports self-closing from 25 degrees, keeping doors secure. Supplied with stainless steel hex clamping screws and a 3mm hex wrench, this hinge is simple to mount in frameless enclosures. Its mouse ear design makes it adjustable even after installation, allowing fine tuning of the door alignment.
