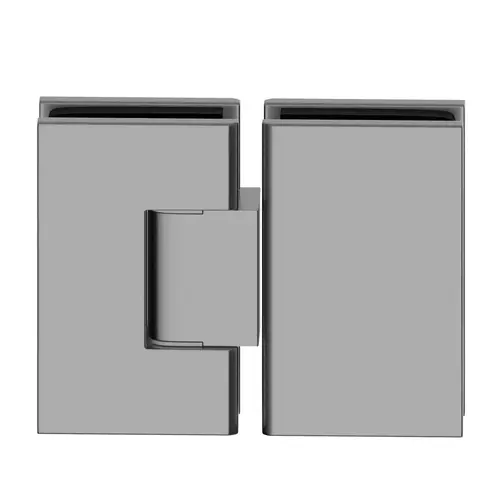

Brixwell H180GTGASA Adjustable Glass To Glass Door Hinge 180 Degrees 3/8" and 1/2" Glazing Thickness Satin Finish
Item #: H180GTGASA by Brixwell
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Satin finish with solid forged brass body makes this glass hinge durable and decorative for bathroom enclosures.
- Measures 3-9/16" height, 4-7/16" overall width, 2-3/16" plate width on both sides, and 3/16" plate thickness.
- Compatible with 3/8" and 1/2" glass, this door hinge is suitable for frameless glass-to-glass shower setups.
- Designed for maximum door widths of 30" with 2 hinges or 36" with 3, making this frameless hinge versatile.
- Glass-to-glass 180 degree mounting creates wide openings, making this pivot hinge practical for shower installations.
- Mouse ear design with square edge profile aligns glass panels precisely, supporting reliable glass fitting.
- Includes stainless steel clamping screws, crosshead screw, and hex wrench, ensuring easy hinge plate installation.
Height
3-9/16" (90mm)
Finish
Satin
Mounting Type
Glass To Glass
Material
Solid Forged Brass
Overall Width
4-7/16" (113mm)
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Edge Profile
Square
Self-Closing
From 25 Degrees
Hardware Includes
Matching Finish SS Hex Clamping Screws and Wrench
Adjustable
Yes
Design Style
Mouse Ear Design
Plate Thickness
3/16" (5mm)
Glass To Glass Angle
180 Degrees
Max Door Width 3 Hinges
36" (914mm)
Cross Head Screw Included
Yes
5 Degrees Preset
No
Plate Width (Both Side)
2-3/16" (55mm)
Self Centering Function
0 Degrees Return Adjustment Upto 30Degrees
Per Hinge Rating
40 lbs Per Hinge
Pins and Springs Material
Stainless Steel
Max Door Weight 3 Hinges
120 lbs
Max Door Width 2 Hinges
30" (762mm)
Max Door Weight 2 Hinges
80 lbs
Product Overview
The Adjustable Glass To Glass Shower Door Hinge 180 Degrees in Satin finish is designed for frameless shower enclosures that need reliable glass-to-glass door connections. Made from solid forged brass, this hinge provides stable support for glass panels with thicknesses of 3/8" and 1/2" (10 and 12mm). The square edge profile and Satin finish allow it to coordinate easily with other bathroom hinge and shower hardware. This hinge includes stainless steel hex clamping screws, crosshead screws, and a hex wrench to help with installation. The hinge measures 3-9/16" in height, 4-7/16" in overall width, and 3/16" plate thickness, with each side measuring 2-3/16" wide. It is built with stainless steel pins and springs for smooth operation. The hinge is rated at 40 lbs per hinge, with 2 hinges supporting up to 80 lbs and 3 hinges supporting up to 120 lbs. The hinge features a self-centering function that returns to 0 degree and offers adjustment up to 30 degrees in or out. It also includes a self-closing feature that engages from 25 degree. With its 180-degree angle design, this hinge allows glass doors to swing both inward and outward, providing flexibility in bathroom layouts. Ideal for use with frameless shower doors, glass panels, and residential enclosures, this hinge supports clean installation without extra hardware. The mouse ear design helps make adjustments even after the hinge has been installed.
