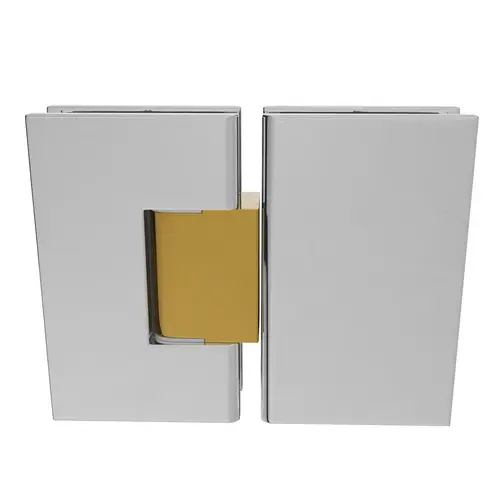

Brixwell H180GTGCB Glass To Glass Door Hinge 180 Degrees 3/8" and 1/2" Glazing Thickness Chrome With Brass Accents Finish
Item #: H180GTGCB by Brixwell
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Solid forged brass with chrome with brass accents finish makes this glass hinge strong and decorative for shower enclosures.
- Measures 3-9/16" height, 4-7/16" overall width, 2-3/16" plate width on both sides, and 3/16" plate thickness.
- Designed for 3/8" and 1/2" glass panels, this door hinge ensures compatibility with standard frameless shower doors.
- Each hinge supports 40 lbs, with 2 hinges rated at 80 lbs and 3 hinges at 120 lbs, making this shower hinge dependable.
- Suitable for door widths of 30" with 2 hinges or 36" with 3, making this frameless hinge versatile for installations.
- Self-closing from 25 degree allows the pivot hinge to bring doors back smoothly for safe bathroom use.
- Includes stainless steel hex clamping screws, crosshead screw, and wrench, making this hinge plate installation-ready.
Height
3-9/16" (90mm)
Finish
Chrome with Brass Accents
Mounting Type
Glass To Glass
Material
Solid Forged Brass
Overall Width
4-7/16" (113mm)
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Edge Profile
Square
Self-Closing
From 25 Degrees
Hardware Includes
Matching Finish SS Hex Clamping Screws and Wrench
Adjustable
No
Design Style
Mouse Ear Design
Plate Thickness
3/16" (5mm)
Glass To Glass Angle
180 Degrees
Max Door Width 3 Hinges
36" (914mm)
Cross Head Screw Included
Yes
5 Degrees Preset
No
Plate Width (Both Side)
2-3/16" (55mm)
Self Centering Function
0 Degrees Return with Reversible 5 Degrees Pin
Per Hinge Rating
40 lbs Per Hinge
Pins and Springs Material
Stainless Steel
Max Door Weight 3 Hinges
120 lbs
Max Door Width 2 Hinges
30" (762mm)
Max Door Weight 2 Hinges
80 lbs
Product Overview
The Adjustable Glass to Glass Door Hinge 180 Degrees is designed for frameless shower enclosures and modern bathroom glass panels. Built from solid forged brass with a chrome with brass accents finish, this hinge combines function and appearance for shower hardware projects. The hinge connects two glass panels at a straight 180 degree angle, supporting stable door movement and alignment. This hinge works with 3/8" and 1/2" (10 and 12mm) glass thickness, making it suitable for common frameless shower door installations. It features stainless steel pins and springs that allow the door to self-close from 25 degrees, supporting practical operation in bathrooms. The hinge has a 0 degree return function and includes a reversible 5 degree pin for added adjustment. The hinge measures 3-9/16" in height, 4-7/16" in overall width, and 3/16" plate thickness, with each side measuring 2-3/16" wide. Each hinge is rated at 40 lbs, with two hinges supporting up to 80 lbs and three hinges supporting up to 120 lbs. Door width compatibility includes 30" with two hinges and 36" with three hinges, making it adaptable for different bathroom layouts. The hinge comes with stainless steel hex clamping screws, crosshead screws, and a wrench, providing all needed components for installation. Its square edge profile and mouse ear design support ease of adjustment during setup.
