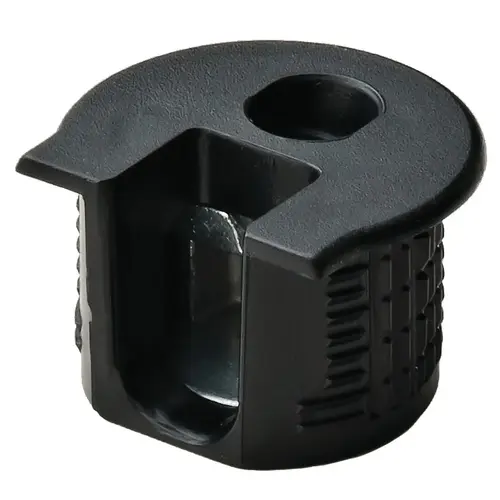

Hafele 263.10.305 Connector Housing, Rafix 20 System, without Ridge, Plastic 9.5 mm 14.2 mm +0.2 mm 19 - 26 mm without with Tightening Element, For wood thickness 19 mm, black Signal black, RAL 9004

Item #: 263.10.305 by Hafele

Brand: Hafele

UPC #: 4000934048754

See reviewsSee reviews
See reviews summary
In Stock

$0.52

0.60 /each
SAVE UP TO 0.05
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 100000+ units available

Finish: Signal black, RAL 9004

For wood thickness: 19 – 26 mm

≤16 mm
16 – 26 mm
≤19 mm
19 – 26 mm
Empty

Ridge: without

Empty
with
without
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Material

Plastic, Tightening element: Zinc alloy

Drive

PZ2 cross slot

Drilling Depth

14.2 mm +0.2 mm

For wood thickness

19 – 26 mm

Ridge

without

Dim. A

9.5 mm

For panel material

Wood

Version

with rim, with tightening element, without ridge, without dowel

Drill hole diameter housing

20 mm

Color/Finish

Signal black, RAL 9004

Dimension "A"

9.50 mm

Rafix ridge

without

Drilling diameter connector housing

20 mm

Base-handle material formula

Plastic, Tightening element: Zinc alloy

ArticleType

NORMAL

Type of drive connector

PZ2 cross slot

For wood thickness formula

≥19 mm

Drilling depth d formula

14.2 mm +0.2 mm

Equipped with connector housings

with tightening element|without dowel|with rim|without ridge

Colour finish refinement

Signal black, RAL 9004

Product Overview
Optional Accessories: P-00861781;P-00901699
