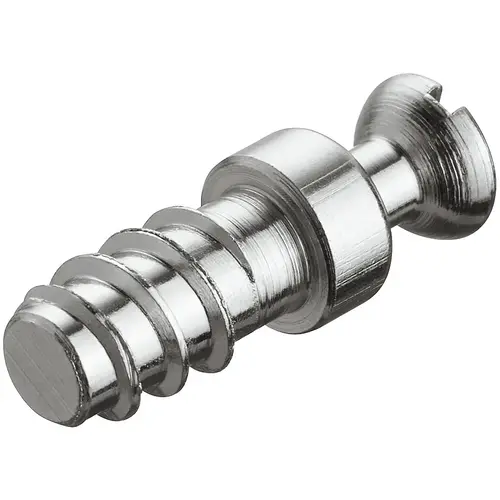

Connecting Bolt, Rafix 20 11 mm, Steel Material, Special Thread, 11 mm Thread Length, Zinc Plated Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 263.20.847 Connecting Bolt, Rafix 20 11 mm, Steel Material, Special Thread, 11 mm Thread Length, Zinc Plated Finish

Item #: 263.20.847 by Hafele

Brand: Hafele

UPC #: 4015643455137

See reviewsSee reviews
See reviews summary
In Stock

$0.30

0.35 /each
SAVE UP TO 0.03
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 100000+ units available

Thread length: 11 mm

8 mm
11 mm
15 mm

Color/finish: Zinc Plated

blank
Zinc Plated
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Constructed from steel with a zinc-plated finish, this connecting bolt is designed for use in shelving and display hardware systems.
  • Features a special thread design with a thread length of 11 mm, providing a consistent connection for Rafix 20 housing systems.
  • Designed for use with a 7 mm bolt hole and requires a 5 mm drill hole diameter for installation in various panel materials.
  • Compatible with PZ2 cross slot or flat blade drive tools, allowing for standard tool usage during the assembly of shelving units.
  • Suitable for shelf hardware applications in hospitality and display shelving systems, facilitating the connection of panels.
  • Designed for use with Rafix 20 housing systems to provide a connection in furniture and shelving units for panel assembly.
  • Includes a special thread type to facilitate assembly in various display and shelving configurations, ensuring a firm grip.

Color/Finish

Zinc Plated

Bolt hole

7 mm

For drill hole diameter

5 mm

Drive

PZ2 cross slot, Flat blade

Thread Length

11 mm

Thread

Special thread

Material

Steel

Thread Type

Special thread

Dimensioned drawing

java.util.ArrayList$Itr@990e505

Substitute photo

java.util.ArrayList$Itr@28229e22

Color finish multiple

zinc plated

Thread version

Special thread

Base material extended multi selection

Steel

Type of drive bolt

PZ2 cross slot|Flat blade

ArticleType

NORMAL

Type of thread

Special thread

Product Overview
The Connecting Bolt, Rafix 20 11 mm With special thread, Zinc-plated, thread length L: 11 mm Zinc plated is a component used in shelving and display systems. Constructed from steel with a zinc-plated finish, this bolt is designed for use with Rafix 20 housing systems. It features a special thread type with a thread length of 11 mm. The bolt is compatible with a 7 mm bolt hole and requires a 5 mm drill hole diameter for installation. The drive type is a PZ2 cross slot or flat blade, allowing for standard tool usage. This bolt is intended for use in shelf hardware applications within hospitality and display shelving systems. The Rafix 20 system is commonly used for connecting panels in furniture and shelving units, providing a connection that can be tightened or loosened as needed. The bolt is designed to be driven into the panel, with the special thread ensuring a firm grip within the material. The 11 mm thread length is specific to the requirements of the Rafix 20 housing, ensuring that the bolt reaches the correct depth for a secure fit. This component is suitable for use in various display and shelving configurations where a reliable connection is required for panel assembly.
