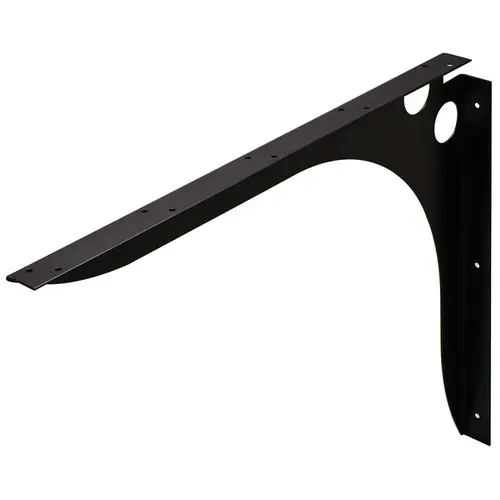

Hafele 287.74.301 SpeedBrace Work Surface Bracket, Rigid (LxWxH) 305 x 38 x 203 mm, black
Item #: 287.74.301 by Hafele
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- The specified load bearing capacity applies:
- Only when used in pairs
- With even load distribution (surface loads)
- With proper and reliable attachment to the wall
- The fixing method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).
- Recommended Countertop Sizes:
- 21" x 28" brace: 30"-32" tops
- 28" x 21" brace: 22"-24" tops
- 15" x 18" brace: 20"-24" tops
- 18" x 15" brace: 16"-20" tops
- 8" x 12" brace: 10"-16" tops
Height
8"
Width
1-1/2"
Area of application
Two different sized arm lengths, which allow for one brace to be used for two different sized countertops Two conduit holes, which are designed for running power and communication cables independently
Load bearing capacity
Per pair: 1000 lbs
Length
12"
Depth
30 mm
Product version
Rigid
Material
Steel
Size (LxWxH)
305 x 38 x 203 mm
Color/Finish
Black
Version
rigid
Installation reference
Countersunk screw holes allow screws to be mounted flush, recommended screw size is a #8 with a countersunk head
Product Overview
SpeedBrace Work Surface Bracket, Rigid 30.00 mm 8" 12" 1-1/2" Centers, (LxWxH) 305 x 38 x 203 mm, black
