Features
- Constructed from steel for use in cabinet and furniture hardware systems, providing a reliable solution for door movement.
- Features a 110 degree opening angle for wide access to cabinet interiors, suitable for various furniture applications.
- Designed for full overlay door configurations with a straight crank type, ensuring proper alignment and clearance.
- Requires a 35 mm cup drilling diameter and 11.5 mm cup drilling depth for installation on cabinet doors.
- Utilizes a 45/9.5 drilling pattern for precise mounting, compatible with standard cup drilling processes.
- Suitable for cabinet and furniture hinge applications in residential or commercial settings for consistent performance.
- Includes soft-close mechanism for controlled and quiet door movement, preventing slamming in furniture assemblies.
Opening Angle
110°
Cup drilling depth
11.5 mm
Door processing for assembly
cup drilling
Concealed hinge version
half overlay
Material
Steel
Cup drilling diameter
35 mm
Crank type
Straight
Drilling pattern
45/9.5
Opening angle value list
110°
Drilling pattern type value list
45/9.5
Base-handle material formula
Steel
ArticleType
NORMAL
Mounting version furniture hinge
half overlay
Product Overview

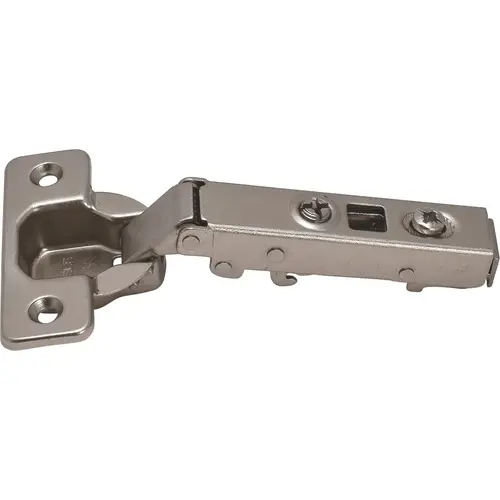

The clip-on hinge, 110 degree opening angle, full overlay soft-close is a cabinet hinge designed for furniture applications. constructed from steel, this hinge features a 110 degree opening angle and a straight crank type for full overlay door configurations. it requires a cup drilling diameter of 35 mm and a cup drilling depth of 11.5 mm. the drilling pattern is 45/9.5. this concealed hinge version is designed for half overlay applications. the clip-on mechanism allows for efficient attachment to mounting plates, facilitating the installation process on various cabinet doors. the soft-close feature provides controlled and quiet closing of the door, preventing slamming and reducing wear on the cabinet frame. this hinge is suitable for standard cabinet and furniture hinge applications in residential or commercial settings, providing a reliable solution for door movement. the steel construction ensures structural integrity for daily use in furniture assemblies. the hinge is compatible with standard cup drilling processes, making it a versatile choice for cabinet makers and furniture manufacturers. the straight crank design is specifically engineered for full overlay doors, ensuring proper alignment and clearance when the door is closed.
