Features
- Constructed from steel with a soft-close mechanism for controlled door movement in cabinet and furniture applications.
- Features a 110 degree opening angle and high cranked crank type for inset door mounting configurations.
- Designed for door thicknesses ranging from 9/16" to 13/16" and side panel thicknesses of at least 5/8".
- Requires a cup drilling diameter of 1-3/8" and a cup drilling depth of 7/16" for proper installation.
- Includes a drilling pattern of 45/9.5 and a distance to cup range of 1/8" to 1/4" for precise alignment.
- Suitable for inset overlay applications, providing a concealed hinge solution for various furniture doors.
- Utilizes cup drilling for door processing during assembly, ensuring a stable fit for the cabinet hinge.
Material
Steel
Opening Angle
110°
For Door Thickness
14 – 20 mm
Door mounting
inset
Cup drilling depth
11.5 mm
Crank type
High Cranked
For min. panel thickness
Side: 5/8"
Distance to cup
≥ 3 – ≤ 7 mm
Door processing for assembly
cup drilling
For door thickness min.
9/16"
Cup drilling diameter
35 mm
Concealed hinge version
inset
Drilling pattern
45/9.5
Opening angle value list
110°
Drilling pattern type value list
45/9.5
Base-handle material formula
Steel
ArticleType
NORMAL
Mounting version furniture hinge
inset
Product Overview

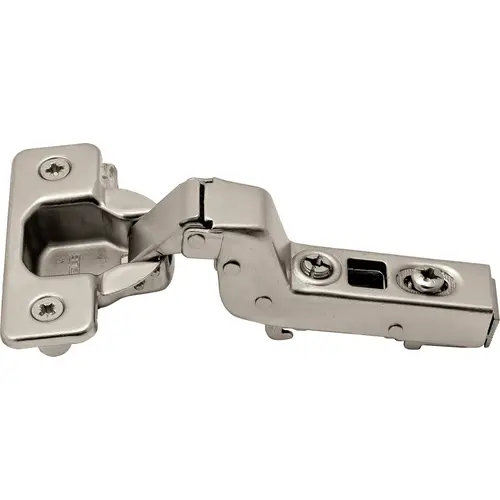

The clip hinge, opening angle 110 degree, inset overlay soft-close is a concealed hinge designed for inset door mounting in cabinet and furniture applications. constructed from steel, this hinge features a soft-close mechanism for controlled door movement. it is designed for a door thickness range of 9/16" to 13/16" (14-20 mm). the hinge requires a cup drilling diameter of 1-3/8" (35 mm) and a cup drilling depth of 7/16" (11.5 mm). it features a high cranked crank type and a drilling pattern of 45/9.5. the distance to the cup is between 1/8" and 1/4" (3-7 mm). this hinge is suitable for side panels with a minimum thickness of 5/8". the assembly process involves cup drilling for door processing. this hinge is intended for use in standard cabinetry where an inset overlay is required. the soft-close mechanism provides a consistent closing action for cabinet doors. the steel construction provides a stable base for the hinge mechanism. the drilling pattern of 45/9.5 ensures compatibility with standard cabinet door preparation methods.
