- Constructed with an automatic closing spring for reliable cabinet door operation, this hinge is designed for furniture and cabinet applications.
- Features a 165 degree opening angle for wide access to cabinet storage, allowing for easy reach and visibility of items inside the cabinet.
- Designed for half overlay door mounting applications in furniture, providing a standard fit for various cabinet door configurations and styles.
- Compatible with door thicknesses from 14 to 26 mm and a minimum thickness of 9/16", ensuring versatility for different cabinet door materials.
- Requires a 35 mm cup drilling diameter and 11.5 mm cup drilling depth, with a drilling pattern of 45/9.5 for precise installation on doors.
- Suitable for side panels with a minimum thickness of 5/8", and features a distance to cup ranging from 3 mm to 7 mm for flexible mounting.
- Includes 3-dimensional adjustment capability when paired with an appropriate mounting plate, allowing for accurate door alignment after installation.
Opening Angle
165°
Functionality
With automatic closing spring
For Door Thickness
14 – 26 mm
Model series
Metalla SM 165°
Cup fixing
for screw fixing
Door mounting
half overlay
Adjustment facility
3-dimensional (with appropriate mounting plate)
Cup drilling depth
11.5 mm
Crank type
Straight
For min. panel thickness
Side: 5/8"
Distance to cup
≥ 3 – ≤ 7 mm
Door processing for assembly
cup drilling
For door thickness min.
9/16"
Concealed hinge version
half overlay
Cup drilling diameter
35 mm
Version
With automatic closing spring
Drilling pattern
45/9.5
Function
With automatic closing spring
Opening angle value list
165°
Drilling pattern type value list
45/9.5
ArticleType
NORMAL
Adjustment facility formula
3-dimensional (with appropriate mounting plate)
Product Overview

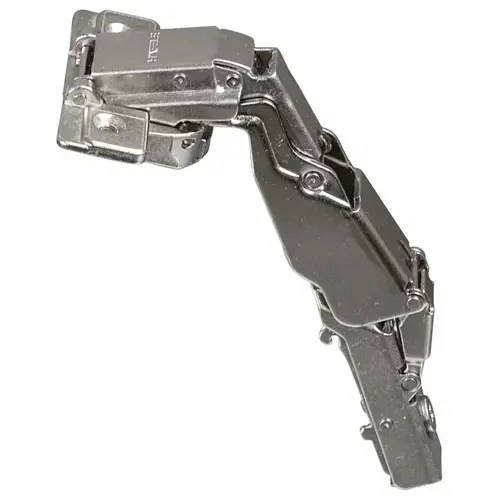

The wide angle clip-on hinge, metalla sm 165 degree, is a cabinet hinge designed for half overlay door mounting. this hinge features a 165 degree opening angle, allowing for wide access to cabinet interiors. it is constructed for screw fixing and requires a cup drilling diameter of 35 mm and a cup drilling depth of 11.5 mm. the hinge is suitable for door thicknesses ranging from 14 to 26 mm, with a minimum door thickness of 9/16". it is compatible with side panels having a minimum thickness of 5/8". the hinge includes an automatic closing spring for consistent operation. it features a straight crank type and a drilling pattern of 45/9.5. the distance to the cup is between 3 mm and 7 mm. it offers 3-dimensional adjustment when used with an appropriate mounting plate. this hinge is designed for standard cabinet door processing and assembly, utilizing cup drilling for installation. the straight crank design and the 45/9.5 drilling pattern ensure precise alignment for furniture applications. the automatic closing spring provides a reliable closing action for cabinet doors, while the 165 degree opening angle provides maximum clearance for accessing items stored within the cabinet.
